1 Way 19″ 2U Power Metered 32A BS4343 Automatic Transfer Switch 2x 32A BS4343 Plug PDU

1 Way 19″ 2U Power Metered 32A BS4343 Automatic Transfer Switch 2x 32A BS4343 Plug PDU

£410.73 Excl. VAT

In stock

£410.73 Excl. VAT

Part No. ATS/32/PM

• The Olson Electronics Automatic Transfer Switch has two mains supplies that provide redundant power to connected equipment
• It is designed to normally supply power from the primary supply ‘A’. If that primary supply becomes unavailable for any reason, it will automatically switch to the secondary supply ‘B’, with no interruption to the connected equipment
• Once the primary supply ‘A’ is available again it will automatically switch back, again without interruption to the equipment
• PLEASE NOTE that the primary supply ‘A’ and the secondary supply ‘B’ must both be connected to the same phase
• 19″ Horizontal 2U Mounting
• A robust mild steel construction with black paint finish

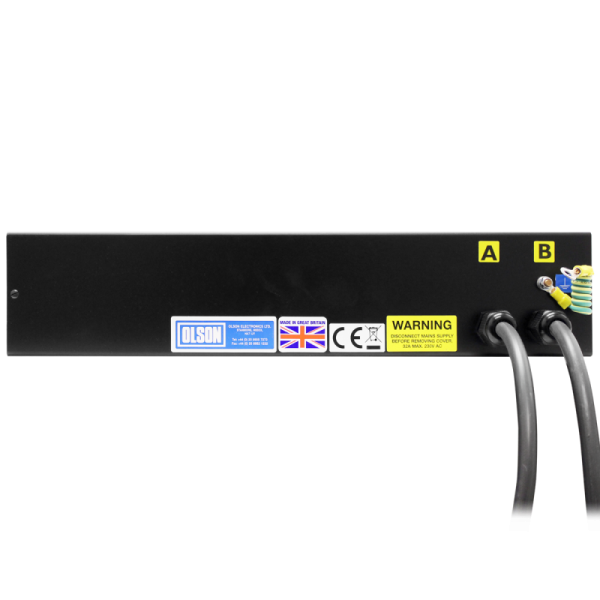

• 2x IEC309 (BS4343) 32A plugs for the 2x mains supplies
• IEC309 (BS4343) 32A socket for equipment
• Incorporating the Olson Deluxe Digital Power Meter
• Available in two versions with either a front or rear mounted 32A BS4343 socket outlet
• External M5 earth stud with 250mm long earth lead for maximum safety
• 32A max. rated. 220 – 240VAC
• Switching time ≤ 20mS
• A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:
Monitor Amps, volts, watts and P.F. (all True RMS)
• The ability to either automatically scroll through the four values or to select the parameter to be displayed
• 4x LEDs to easily identify what parameter is being measured
• Accuracy 1% amps, volts, 2% Watts, 3% P.F.

View cart
Compare

Additional information

Product Range

ATS Range

Orientation

Horizontal

Socket Outlet Type

32A IEC 60309 (IEC309 / BS4343)

Number of Sockets

1

Neon

Yes

Switched

Unswitched

Fuse Holder

No

Individually Fused

No

Cable Length

3M

Plug Inlet Type

Colour

Black (RAL 9005)

Current Rating

32A max.

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Socket Outlet Compliance

IEC60309 / IEC309 / BS4343 / CEE17

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

5.39

Height (mm)

88.8 (2U)

Width (mm)

482.6 (19")

Depth (mm)

190

Digital Power Meter

Digital Power Meter
