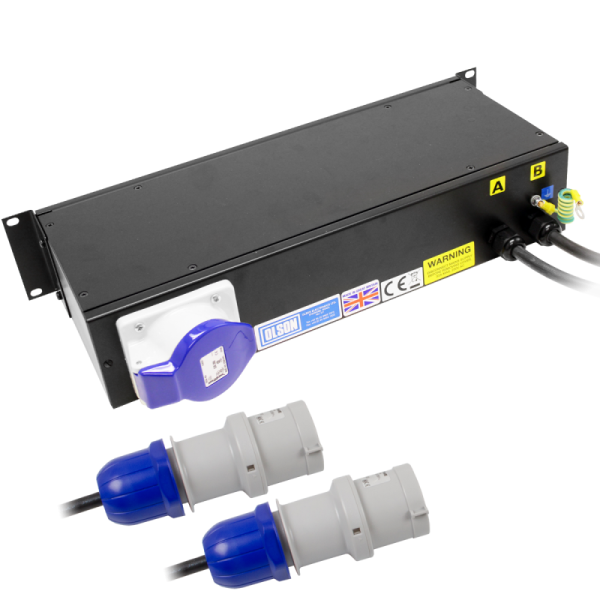

1 Way 19" 2U Power Metered Back Entry 32A BS4343 Automatic Transfer Switch 2x 32A BS4343 Plug PDU - Image 1

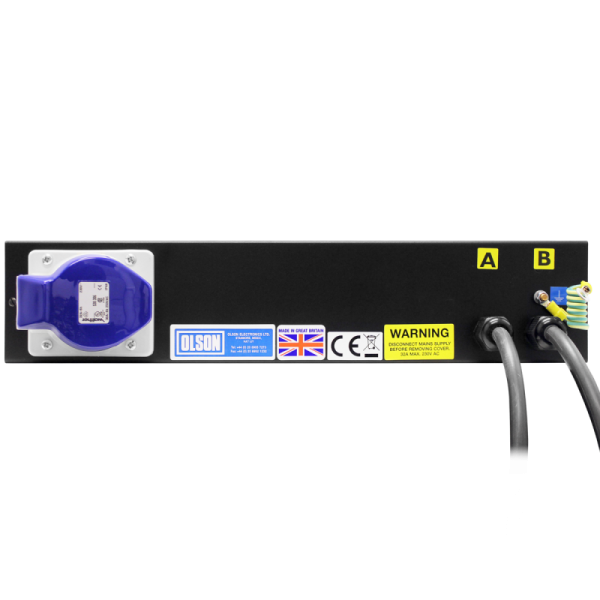

1 Way 19" 2U Power Metered Back Entry 32A BS4343 Automatic Transfer Switch 2x 32A BS4343 Plug PDU - Image 2

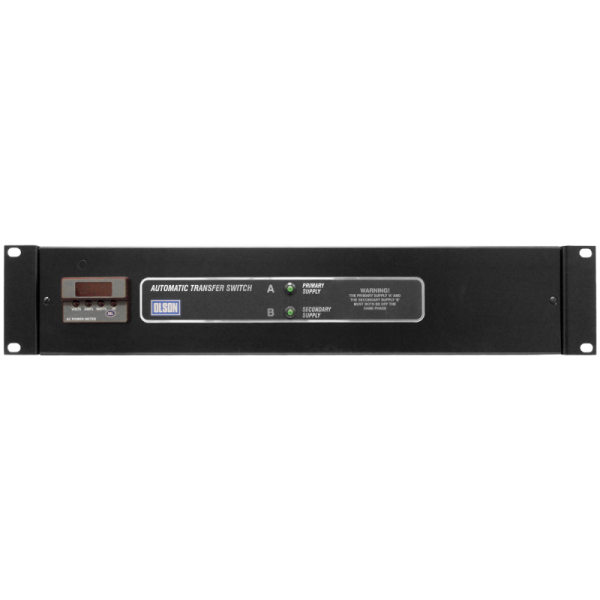

1 Way 19" 2U Power Metered Back Entry 32A BS4343 Automatic Transfer Switch 2x 32A BS4343 Plug PDU - Image 3

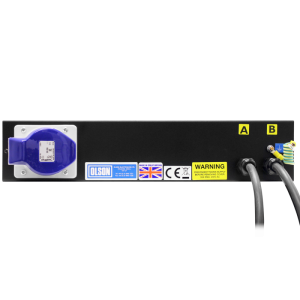

1 Way 19" 2U Power Metered Back Entry 32A BS4343 Automatic Transfer Switch 2x 32A BS4343 Plug PDU - Image 4

1 Way 19″ 2U Power Metered Back Entry 32A BS4343 Automatic Transfer Switch 2x 32A BS4343 Plug PDU

1 Way 19″ 2U Power Metered Back Entry 32A BS4343 Automatic Transfer Switch 2x 32A BS4343 Plug PDU

£530.04 Excl. VAT

In stock

£530.04 Excl. VAT

Part No. ATS/32/PM/B

  • The Olson Electronics Automatic Transfer Switch has two mains supplies that provide redundant power to connected equipment
  • It is designed to normally supply power from the primary supply ‘A’. If that primary supply becomes unavailable for any reason, it will automatically switch to the secondary supply ‘B’, with no interruption to the connected equipment
  • Once the primary supply ‘A’ is available again it will automatically switch back, again without interruption to the equipment
  • PLEASE NOTE that the primary supply ‘A’ and the secondary supply ‘B’ must both be connected to the same phase
  • 19″ Horizontal 2U Mounting
  • A robust mild steel construction with black paint finish
  • 2x IEC309 (BS4343) 32A plugs for the 2x mains supplies
  • IEC309 (BS4343) 32A socket for equipment
  • Incorporating the Olson Deluxe Digital Power Meter
  • Available in two versions with either a front or rear mounted 32A BS4343 socket outlet
  • External M5 earth stud with 250mm long earth lead for maximum safety
  • 32A max. rated. 220 – 240VAC
  • Switching time ≤ 20mS
  • A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:

  • Monitor Amps, volts, watts and P.F. (all True RMS)
  • The ability to either automatically scroll through the four values or to select the parameter to be displayed
  • 4x LEDs to easily identify what parameter is being measured
  • Accuracy 1% amps, volts, 2% Watts, 3% P.F.
    • Compare

    Additional information

    Product Range

    ATS Range
    Orientation

    Horizontal
    Socket Outlet Type

    32A IEC 60309 (IEC309 / BS4343)
    Number of Sockets

    1
    Neon

    Yes
    Switched

    Unswitched
    Fuse Holder

    No
    Individually Fused

    No
    Cable Length

    3M
    Plug Inlet Type

    Colour

    Black (RAL 9005)
    Current Rating

    32A max.
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Socket Outlet Compliance

    IEC60309 / IEC309 / BS4343 / CEE17
    Cable Compliance

    BS 6500
    UKCA / CE Compliant

    Yes
    RoHs Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    5.45
    Height (mm)

    88.8 (2U)
    Width (mm)

    482.6 (19")
    Depth (mm)

    190
