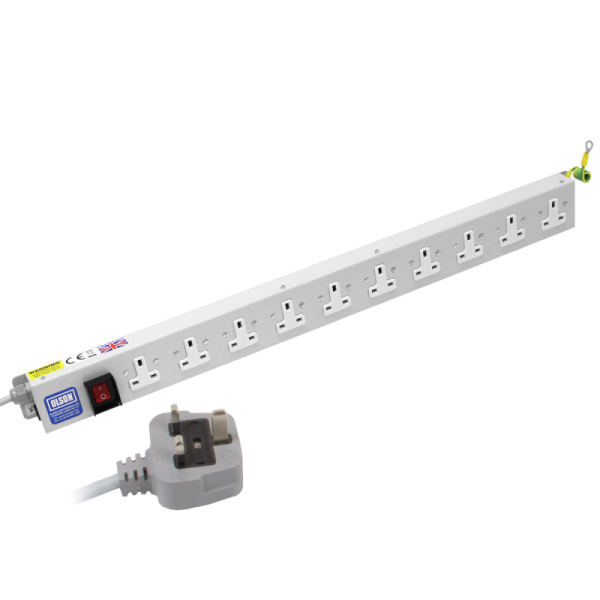

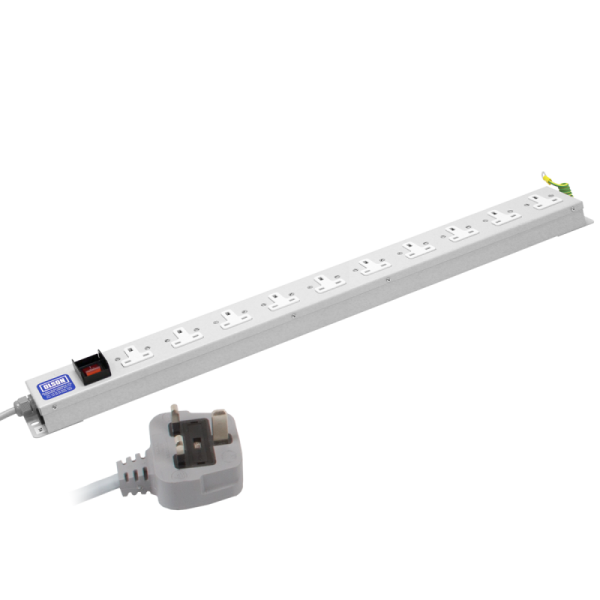

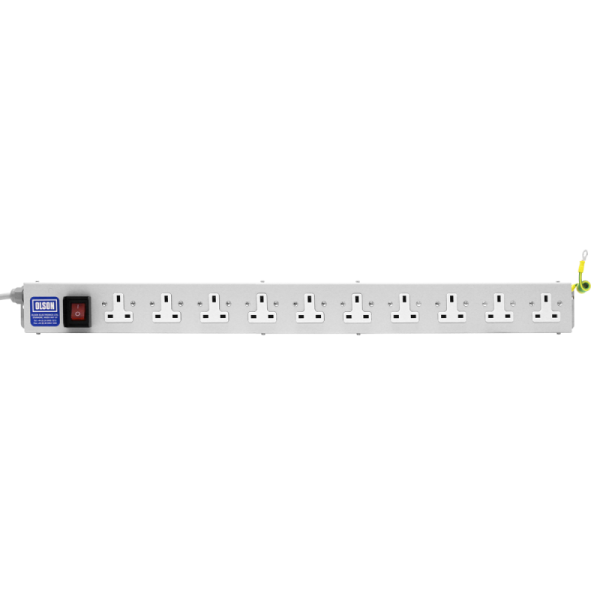

10 Way 13A Illuminated Main Switch Neon Fused PDU

10 Way 13A Illuminated Main Switch Neon Fused PDU

£142.92 Excl. VAT

In stock

£142.92 Excl. VAT

Part No. DP13A/10MS

• A robust mild steel construction
• Light grey RAL 7035 paint finish
• Internal wiring 2.5mm² – 20A rating
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Illuminated double pole power switch
• Panel mounted 7A fuse
• Brackets on each side for easy fixing/installation
• 2m cable – PVC (1.5mm²  3 core) terminated with a 13A fused plug

View cart
Compare

Additional information

Product Range

Fused Super Slim

Orientation

Horizontal

Socket Outlet Type

UK 13A

Number of Sockets

10

Neon

Yes

Switched

Main Switch

Fuse Holder

Yes

Fuse Rating

7A

Individually Fused

No

Cable Length

2M

Plug Inlet Type

Colour

Light Grey (RAL 7035)

Current Rating

13A

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

13 Amp Sockets – BS 1363

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

1.9

Height (mm)

65

Width (mm)

752

Depth (mm)

38

Fixing Centres

736

Digital Power Meter

None
