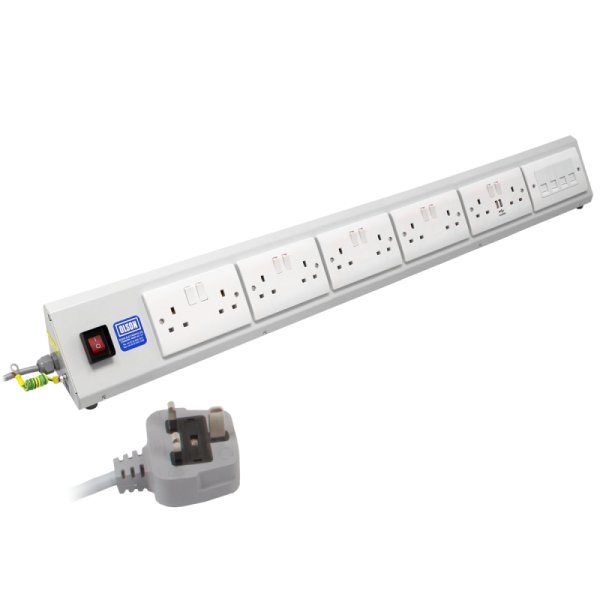

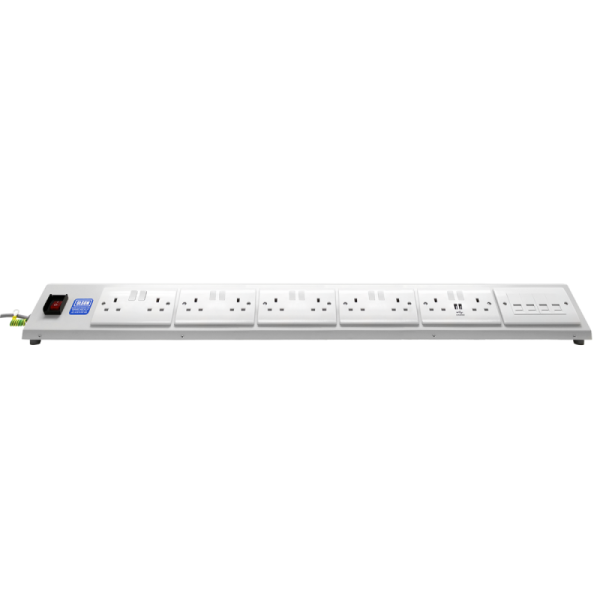

10 Way 13A Switched + 2 USB Charger + 4 RJ45 Ethernet Illuminated Main Switch Sloping Bench PDU
£181.69 Excl. VAT
Part No. 2633/1USB
• A robust mild steel construction
• Light grey RAL 7035 paint finish
• Internal wiring 2.5mm² – 20A rating
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• 2m cable – PVC (1.5mm² 3 core) terminated with a 13A fused plug
• 4x unterminated RJ45 data outlets
• USB Sockets are 5V with total load 3.1A combined (if one device is plugged in, that device will receive the total load, if two devices are plugged in the load is split between them)
- Additional information
Additional information
Product Range | Sloping Power Distribution Units / USB Range |
---|---|
Orientation | Horizontal |
Socket Outlet Type | UK 13A |
Number of Sockets | 10 |
Neon | Yes |
Switched | Individually Switched |
Fuse Holder | No |
Individually Fused | No |
Cable Length | 2M |
Plug Inlet Type | |
Colour | Light Grey (RAL 7035) |
Current Rating | 13A max |
Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
Manufactured To | BS 5733 |
Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
Cable Compliance | BS 6500 |
UKCA / CE Compliant | Yes |
RoHs Compliant | Yes |
Country of Manufacture | United Kingdom |
Weight KGs | 4.459 |
Height (mm) | 95 |
Width (mm) | 1020 |
Depth (mm) | 95 |
Digital Power Meter | None |
