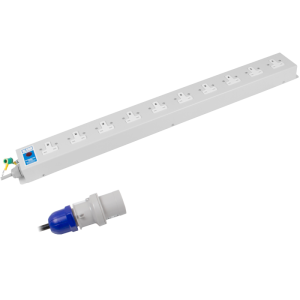

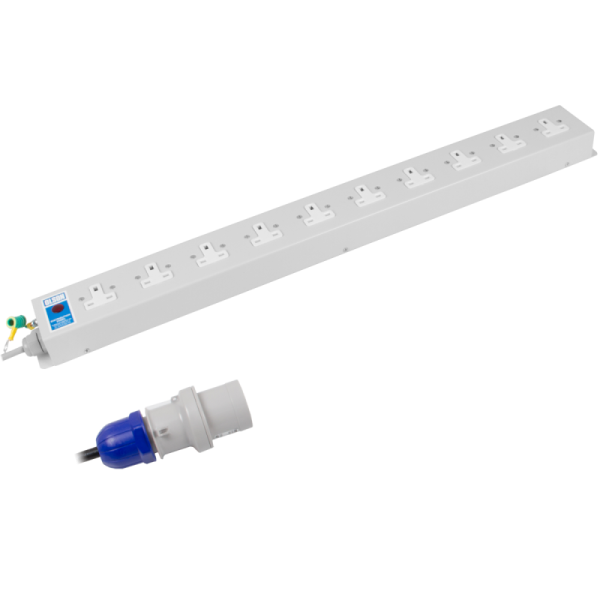

10 Way 13A Unswitched Socket Neon 16A Plug PDU

10 Way 13A Unswitched Socket Neon 16A Plug PDU

£125.26 Excl. VAT

In stock

£125.26 Excl. VAT

Part No. N13A/10/3M/16A

• The Olson Slim Range is ideal for wall or floor mounting and available in 10 different sizes as standard
• A robust mild steel construction
• Light grey RAL 7035 paint finish
• Internal wiring 2.5mm² – 20A rating
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Red neon “mains on” indicator
• Brackets on each side for easy fixing/installation
• 3m of 3 core cable with a 16A IEC 60309 (IEC309 / BS4343 / Commando) plug

View cart
Compare

Additional information

Previous Part No.

N13A/10/16

Product Range

13A Slim Range

Orientation

Horizontal

Socket Outlet Type

UK 13A

Number of Sockets

10

Neon

Yes

Switched

Unswitched

Fuse Holder

No

Individually Fused

No

Cable Length

3M

Plug Inlet Type

Colour

Light Grey (RAL 7035)

Current Rating

16A max.

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Socket Outlet Compliance

13 Amp Sockets – BS 1363

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

2.68

Height (mm)

78

Width (mm)

755

Depth (mm)

45

Fixing Centres

740

Digital Power Meter

None
