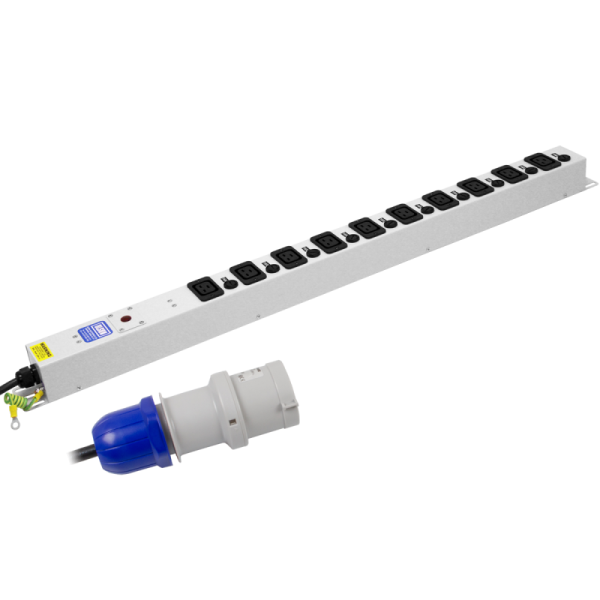

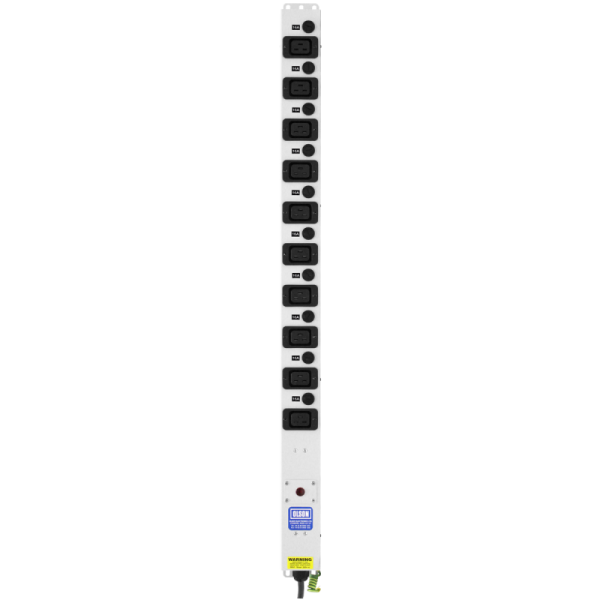

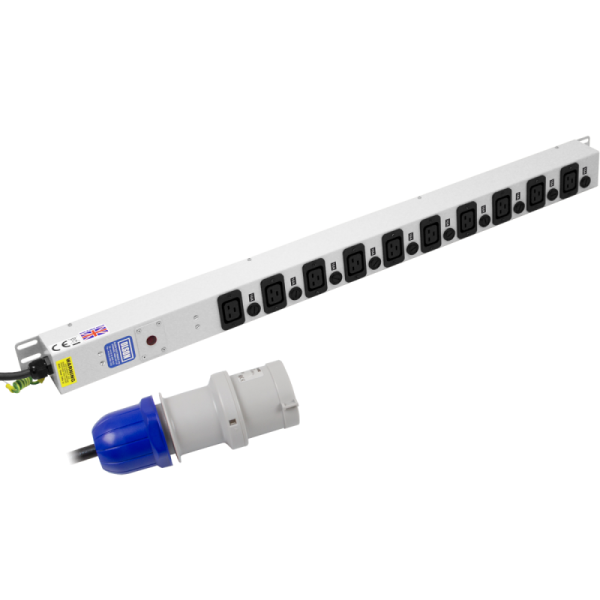

10 Way 16A IEC 60320 C19 Unswitched Individually Fused Neon 32A Plug PDU
£215.85 Excl. VAT
Part No. C19/10/F/32
- 32A rated PDU
- Individually fused IEC 60320 C19 16A sockets
- Sockets fused at 16A standard
- A robust mild steel construction with light grey RAL 7035 paint finish
- Internal wiring 4mm² – 32A rating
- High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
- 3m of 3 core cable with a 32A IEC 60309 (IEC309 / BS4343 / Commando) plug
Compare
- Additional information
Additional information
| Product Range | Individually Fused C19 16A Sockets |
|---|---|
| Orientation | Vertical |
| Socket Outlet Type | C19 16A IEC 60320 |
| Number of Sockets | 10 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | Yes |
| Fuse Rating | 16A |
| Individually Fused | Yes |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 32A |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | CSA, IEC 60320 C19 BEAB, UL, VDE |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 3.3 |
| Height (mm) | 910 |
| Width (mm) | 62 |
| Depth (mm) | 58 |
| Fixing Centres | 894 |
| Digital Power Meter | None |
