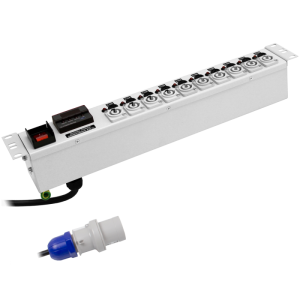

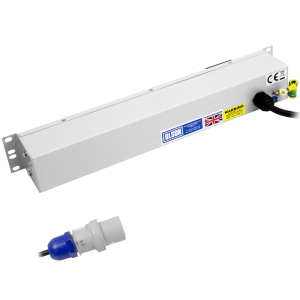

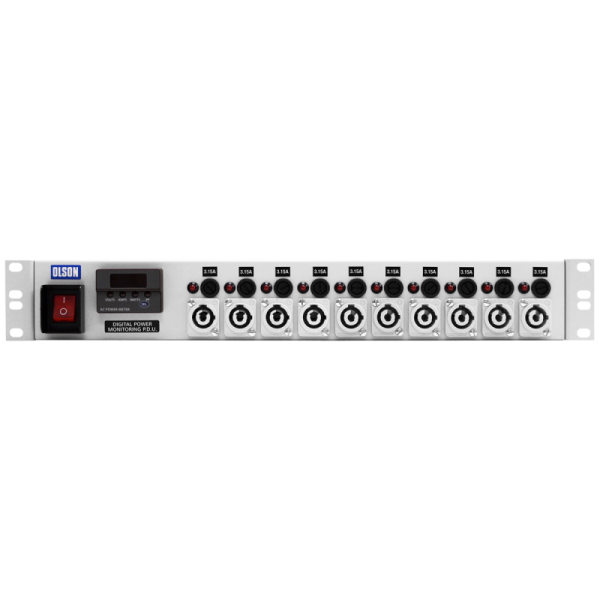

10 Way 19″ 1.5U 20A Neutrik Powercon Individual Neon & Fused Main Switch Power Metered PDU
£263.27 Excl. VAT
Part No. PM1056/16
• A robust mild steel construction
• Light grey RAL 7035 paint finish
• 19″ 1.5U (66.6mm) high
• Neutrik Powercon 20A sockets fused at 3.15A
• Internal wiring 2.5mm² – 20A rating
• High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• Illuminated mains switch and individually fused sockets
• 30A digital power meter
• 3m of 3 core cable with a 16A IEC 60309 (IEC309 / BS4343 / Commando) plug
• A digital meter with easy to read 9.4mm high digits
The Deluxe Power Meter Features:
• Monitor Amps, volts, watts and P.F. (all True RMS)
• The ability to either automatically scroll through the four values or to select the parameter to be displayed
• 4x LEDs to easily identify what parameter is being measured
• Accuracy 1% amps, volts, 2% Watts, 3% P.F.
- Additional information
Additional information
| Previous Part No. | AM1056/16 |
|---|---|
| Product Range | PM Meter Range |
| Orientation | Horizontal |
| Socket Outlet Type | Neutrik Powercon 20A |
| Number of Sockets | 10 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | Yes |
| Fuse Rating | 3.15A |
| Individually Fused | Yes |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 20A |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.294 |
| Height (mm) | 66.6 (1.5U) |
| Width (mm) | 482.6 (19") |
| Depth (mm) | 70 |
| Digital Power Meter | Digital Power Meter |
