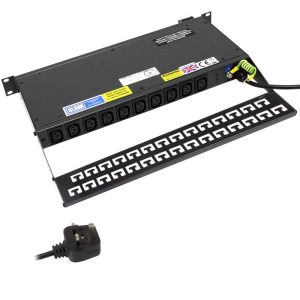

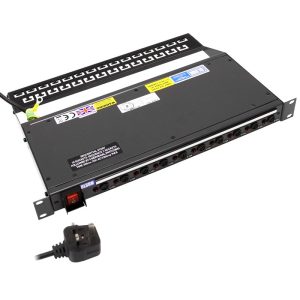

10 Way 19″ 1U Horizontal Rack Mount IEC 60320 C13 Sockets Main Switch Individual Neon & Fused Sequential Start Cable Management PDU

10 Way 19″ 1U Horizontal Rack Mount IEC 60320 C13 Sockets Main Switch Individual Neon & Fused Sequential Start Cable Management PDU

£394.66 Excl. VAT

In stock

£394.66 Excl. VAT

Part No. 3258/CABLE

• 19″ panel ‘1U’ high with illuminated on/off switch, individual neon indicators and fuses. Ten IEC 60320 C13 sockets at the back with ‘Rear Cable Management’
• Neon Indicators and fuses are mounted on the front panel, along with an illuminated On/Off switch. The neons illuminate when the outputs are switched on and only go out when the power is lost or if the fuse blows. Fuse links are all 3.15A anti-surge
• Maximum output current per socket 8A
• 13A input connector with 2m of cable
• A robust mild steel construction with Anthracite RAL 7016 paint finish
• Illuminated 2 pole on-off switch rated 16A with shroud protection
• Overall depth 320mm
• Current 13A max
• High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• The first two sockets are switched on together followed by 8 singles at 600ms intervals
• Identity strip for marking individual circuits

View cart
Compare

Additional information

Product Range

Sequential Start

Orientation

Horizontal

Socket Outlet Type

C13 10A IEC 60320

Number of Sockets

10

Neon

Yes

Switched

Main Switch

Fuse Holder

Yes

Fuse Rating

3.15A

Individually Fused

Yes

Cable Length

2M

Plug Inlet Type

Colour

Anthracite (RAL 7016)

Current Rating

13A max

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

IEC 60320 C13 10A (CEE22)

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

3.7

Height (mm)

44.4 (1U)

Width (mm)

482.6 (19")

Depth (mm)

320

Digital Power Meter

None
