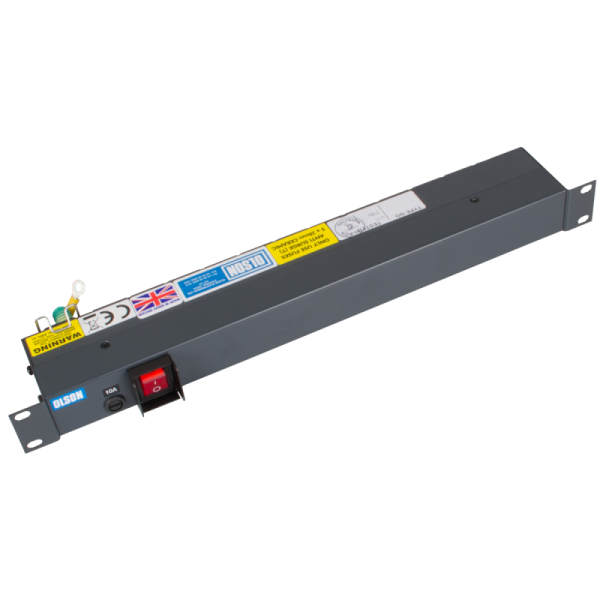

10 Way 19″ 1U Horizontal Rack Mount Rear Facing IEC 60320 C13 Sockets Main Switch PDU

10 Way 19″ 1U Horizontal Rack Mount Rear Facing IEC 60320 C13 Sockets Main Switch PDU

£109.67 Excl. VAT

In stock

£109.67 Excl. VAT

Part No. 2691

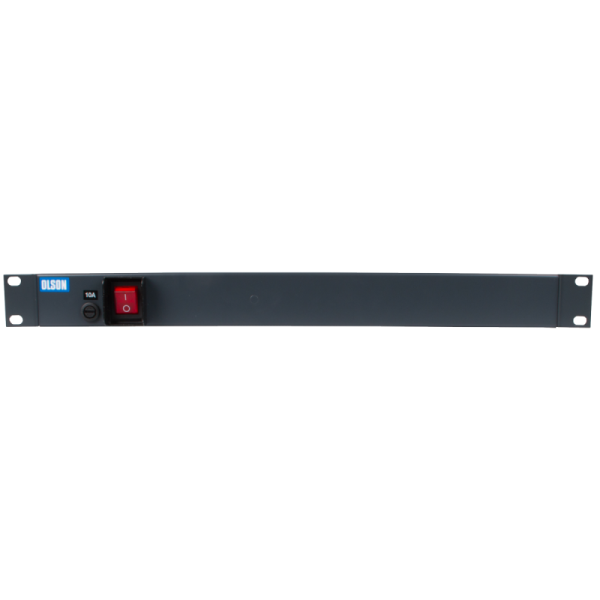

• Illuminated double pole power switch
• A robust mild steel construction
• Anthracite RAL 7016 paint finish
• Horizontal 19″ rack mounting x 1U high

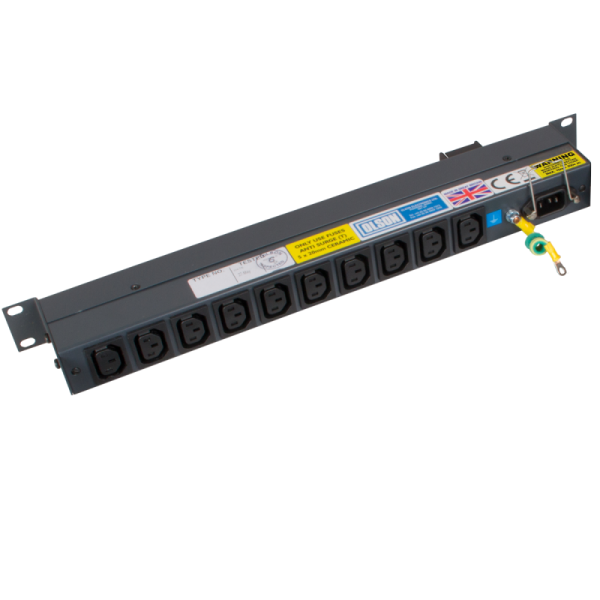

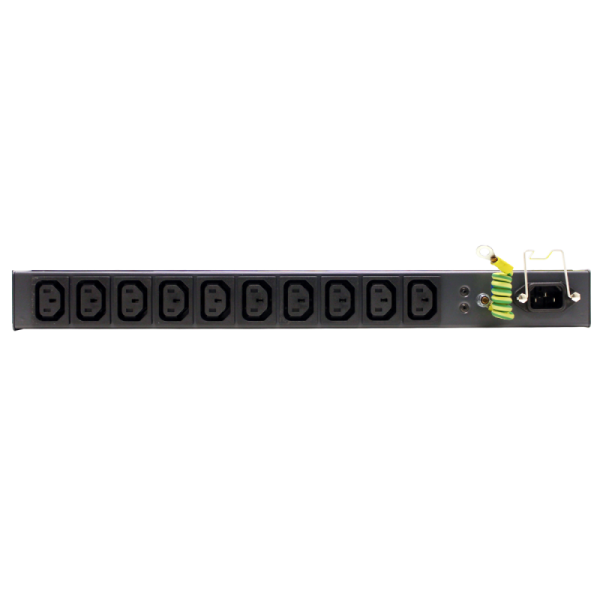

• Rear facing IEC 60320 C14 inlet with retaining clip and C13 sockets
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag

View cart
Compare

Additional information

Product Range

19" Rack Range – C13 Sockets

Orientation

Horizontal

Socket Outlet Type

C13 10A IEC 60320

Number of Sockets

10

Neon

Yes

Switched

Main Switch

Fuse Holder

Yes

Fuse Rating

10A

Individually Fused

No

Cable Length

No Cable Supplied

Plug Inlet Type

Colour

Anthracite (RAL 7016)

Current Rating

10A

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

IEC 60320 C13 10A (CEE22)

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

1.256

Height (mm)

44.4 (1U)

Width (mm)

482.6 (19")

Depth (mm)

70

Digital Power Meter

None
