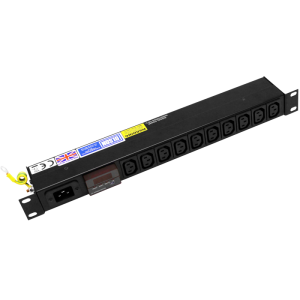

10 Way 19″ 1U Power Metered 10A IEC 60320 C13 Sockets IEC 60320 C20 Inlet Rack Mount PDU

10 Way 19″ 1U Power Metered 10A IEC 60320 C13 Sockets IEC 60320 C20 Inlet Rack Mount PDU

£144.94 Excl. VAT

In stock

£144.94 Excl. VAT

Part No. PM1101

• A robust mild steel construction with a black paint finish
• 19″ 1U (44.4mm) high, 70mm deep, 483mm wide
• 10x IEC 60320 C13 10A sockets
• Can be horizontally or vertically rack mounted by rotating the end brackets
• C20 16A power inlet. Note that a mains cord set has to be ordered separately
High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• Horizontal or vertical rack mounting
• A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:
• Monitor Amps, volts, watts and P.F. (all True RMS)
• The ability to either automatically scroll through the four values or to select the parameter to be displayed
• 4x LEDs to easily identify what parameter is being measured
• Accuracy 1% amps, volts, 2% Watts, 3% P.F.

View cart
Compare

Additional information

Product Range

Meter Range

Orientation

Horizontal

Socket Outlet Type

C13 10A IEC 60320

Number of Sockets

10

Neon

No

Switched

Unswitched

Fuse Holder

No

Individually Fused

No

Cable Length

No Cable Supplied

Plug Inlet Type

Colour

Black (RAL 9005)

Current Rating

16A max

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

CSA, IEC 60320 C13 BEAB, UL, VDE

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

1.6

Height (mm)

44.4 (1U)

Width (mm)

482.6 (19")

Depth (mm)

70
