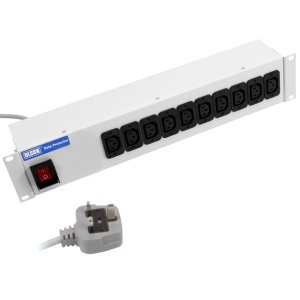

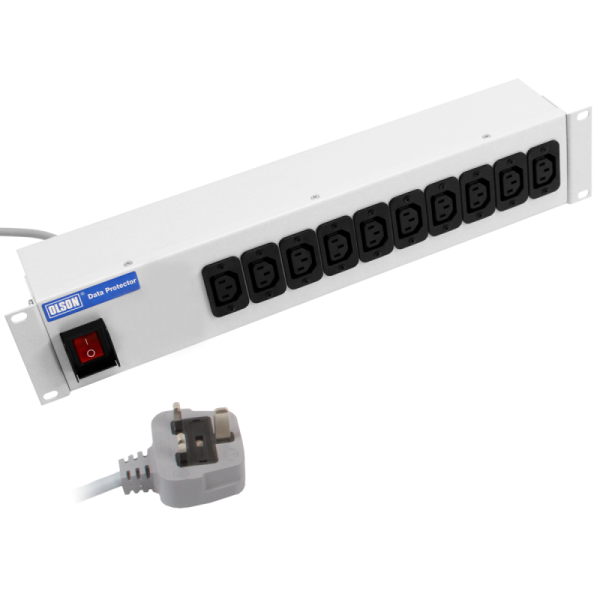

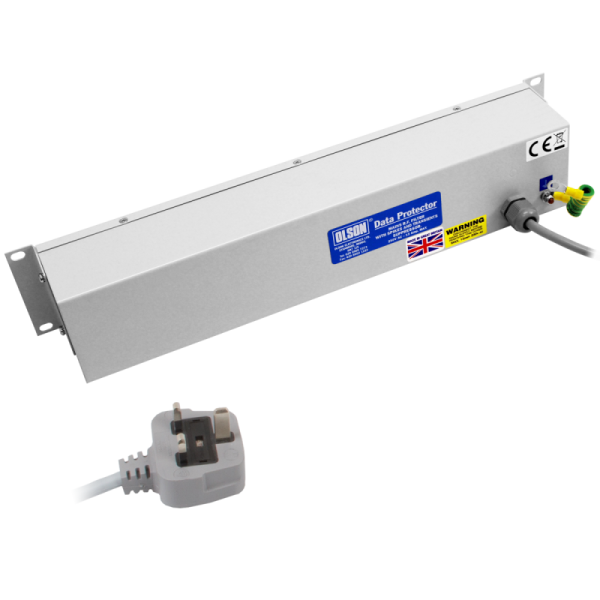

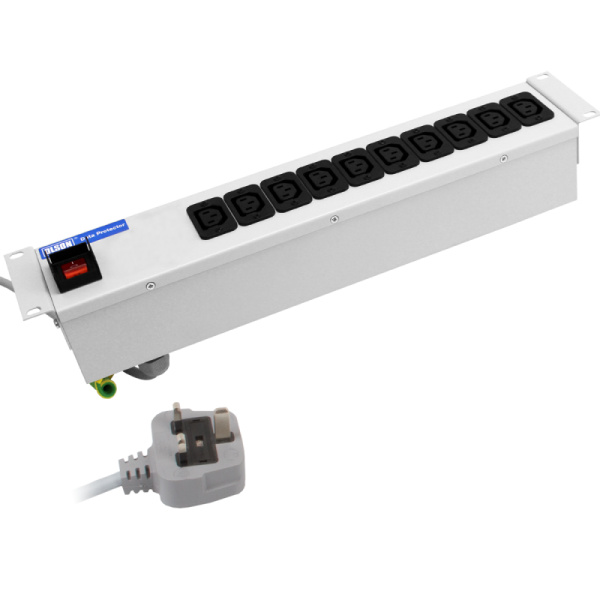

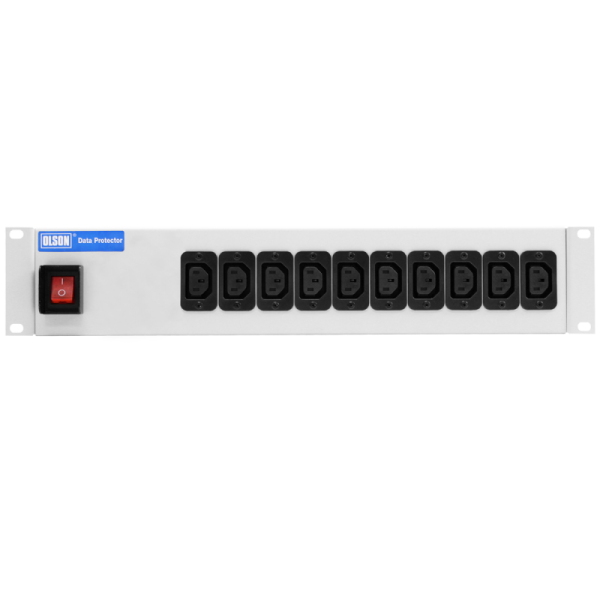

10 Way 19″ 2U 10A IEC 60320 C13 RF Filtered Surge Protected Illuminated Main Switch Fused 13A Plug PDU

10 Way 19″ 2U 10A IEC 60320 C13 RF Filtered Surge Protected Illuminated Main Switch Fused 13A Plug PDU

£156.39 Excl. VAT

In stock

£156.39 Excl. VAT

Part No. FU13A/10

• A robust mild steel construction with light grey RAL 7035 paint finish
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• 16A illuminated double pole mains switch
• 13A mains filter units 2U high
• Brackets on each side for easy fixing/installation
• 2m cable: PVC (1.5mm² 3 core) terminated with a 13A fused plug

Surge Filter:
• All modes L-N, L-E, N-E
• Maximum operating voltage – 275V rms ac
• Transient energy absorption – 3 x 140J
• Transient peak current – (8/20uS) – 6500A
• Impulse response time – <50nS
• Varistor voltage @ 1mA dc test current – 430V
• Maximum clamping voltage @ 100A (8/20uS) – 710V

RF Filter:
• Operating voltage up to 250V at max 400Hz
• Filter rated current 13A @ 400ºC, 11.5A @ 25ºC
• Leakage current 2 x 0.2mA max @ 220V 50Hz
• Fitted with ZNR voltage transient and earthline choke
• Standard spec. Z280G
• Max continuous voltage 320V AC rms @ 25ºC
• Max continuous voltage 416V DC @25ºC
• Varistor 450V min @ 1mA
• Energy 140 Joules 10/10000
• 800V clamping voltage @ 100A
• Max 800mW continuous
• UL, CSA, VDE

View cart
Compare

Additional information

Product Range

IEC 60320 C13 Sockets with Data Protector

Orientation

Horizontal

Socket Outlet Type

C13 10A IEC 60320

Number of Sockets

10

Neon

Yes

Switched

Main Switch

Fuse Holder

No

Individually Fused

No

Cable Length

2M

Plug Inlet Type

Colour

Light Grey (RAL 7035)

Current Rating

10A max

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

IEC 60320 C13 10A (CEE22)

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

2.4

Height (mm)

88.8 (2U)

Width (mm)

482.6 (19")

Depth (mm)

75

Digital Power Meter

None
