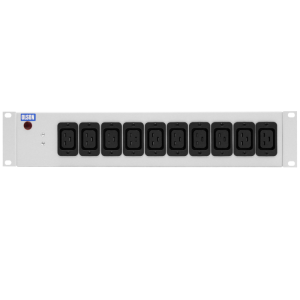

10 Way 2U 19″ 16A IEC 60320 C19 Neon C20 Plug PDU
£122.14 Excl. VAT
Part No. C19/10/R/C20
- 2U front panel
- Strong steel cased finished in light grey RAL 7035
- High-Integrity dual earth bonding for maximum safety
- External M5 earth stud, with earth wire 250mm long
- Red ‘mains on’ neon indicator
- Terminated with a 16A IEC C20 plug and 2m cable
- 19″ x 2U (483mm x 88mm) x 78mm deep
Compare
- Additional information
Additional information
| Product Range | 19" Rack Range – C19 Sockets |
|---|---|
| Orientation | Horizontal |
| Socket Outlet Type | C19 16A IEC 60320 |
| Number of Sockets | 10 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 16A |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | CSA, IEC 60320 C19 BEAB, UL, VDE |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.5 |
| Height (mm) | 88.8 (2U) |
| Width (mm) | 482.6 (19") |
| Depth (mm) | 78 |
| Digital Power Meter | None |
