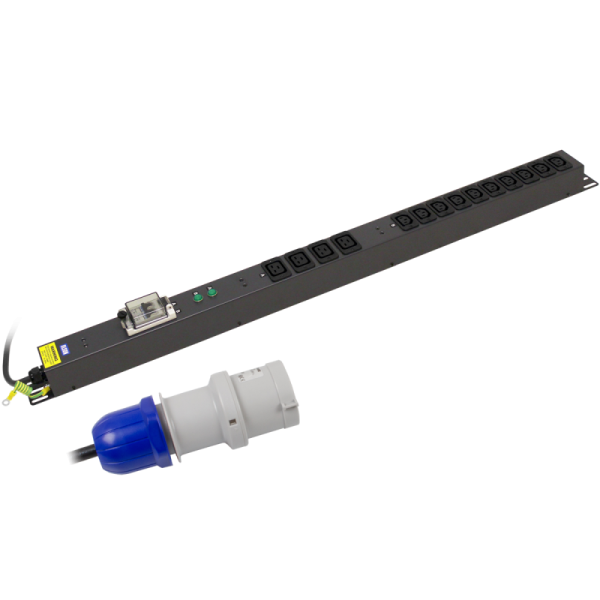

10x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket Circuit Breaker 32A Plug PDU
£229.57 Excl. VAT
Part No. CB/COM10-4/32
• A robust mild steel construction
• Anthracite RAL 7016 paint finish
• 32A rated
• Green mains neon
• 2x 16A single pole circuit breaker
• High-integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• 3m of 3 core cable and a 32A IEC309 / BS4343 (Commando style) plug
Compare
- Additional information
Additional information
| Previous Part No. | CB/COM10+4/32 |
|---|---|
| Product Range | Combination PDU Range |
| Orientation | Vertical |
| Socket Outlet Type | C13 10A + C19 16A |
| Number of Sockets | 10 + 4 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Anthracite (RAL 7016) |
| Current Rating | 32A max. |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 10A Socket : IEC 60320 C13 – 16A Socket: IEC 60320 C19 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 3.2 |
| Height (mm) | 981 |
| Width (mm) | 60 |
| Depth (mm) | 50 |
| Fixing Centres | 965 |
| Digital Power Meter | None |
