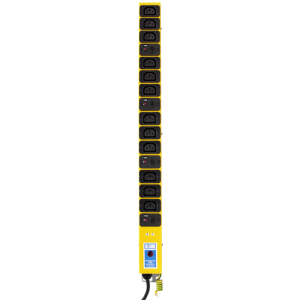

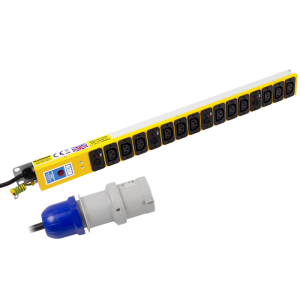

12 Way 10A 4x Neon Fused IEC 60320 C13 Sockets 32A Plug PDU
£206.06 Excl. VAT
Part No. 6A/12/4F/32A
- A robust mild steel construction
- Elegant two tone paint finish with the panel in yellow and a grey case
- IEC 60320 C13 10A shuttered sockets
- Sockets are fused in four banks with 10A fuses and neons
- Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
- Red LED “mains on” indicator
- Brackets on each side for easy fixing and installation
- 3m of 3 core cable with a 32A IEC 60309 (IEC309 / BS4343 / Commando) plug
Compare
- Additional information
Additional information
| Product Range | IEC 60320 C13 Shuttered Sockets |
|---|---|
| Orientation | Vertical |
| Socket Outlet Type | C13 10A IEC 60320 |
| Number of Sockets | 12 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | CSA, IEC257, SEMKO, UL, VDE |
| Fuse Rating | 10A |
| Individually Fused | No |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Light Grey Case (RAL 7035), Yellow Panel (RAL 1012) |
| Current Rating | 32A max. |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | CSA, IEC 60320 C13 10A Shuttered (BEAB, UL, VDE) |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.38 |
| Height (mm) | 672 |
| Width (mm) | 50 |
| Depth (mm) | 40 |
| Fixing Centres | 656 |
| Digital Power Meter | None |
