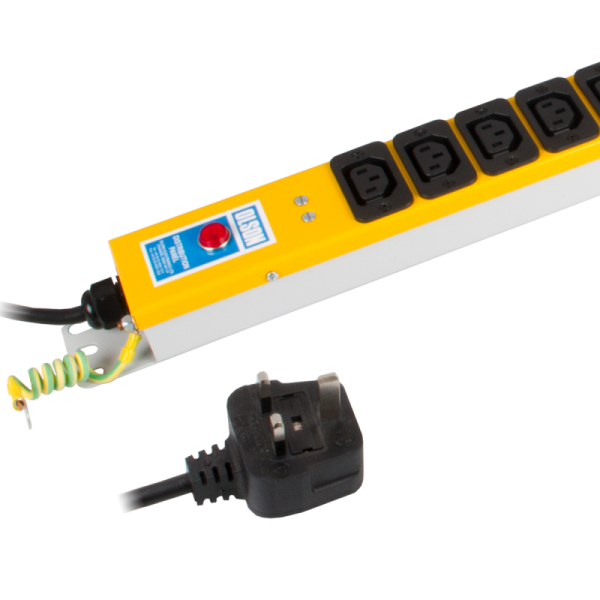

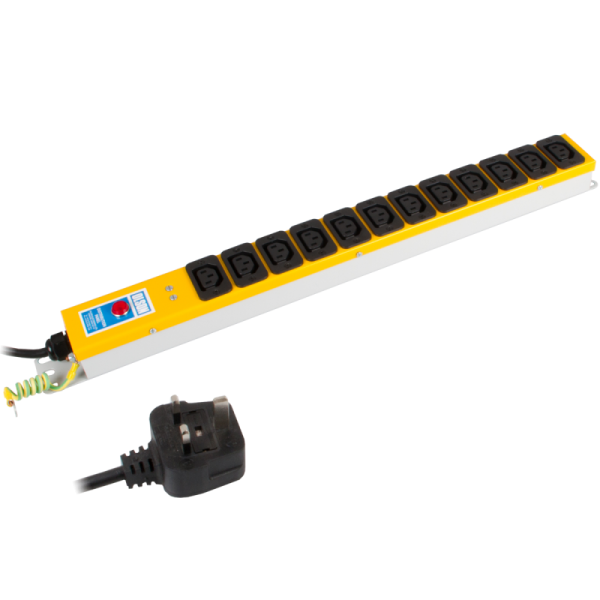

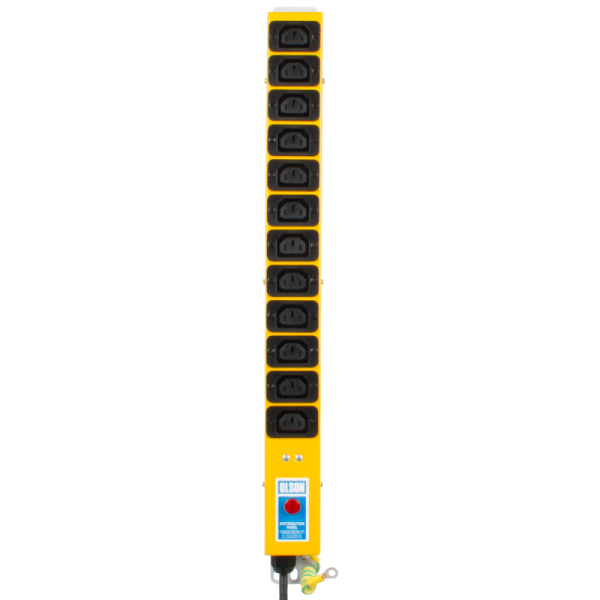

12 Way 10A IEC 60320 C13 Socket Neon 13A Plug PDU
£88.46 Excl. VAT
Part No. 6A/12
• A robust mild steel construction
• Elegant two tone paint finish with the panel in yellow and a grey case
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Red neon “mains on” indicator
• IEC 60320 C13 10A shuttered sockets
• Brackets on each side for easy fixing/installation
• 2m cable: PVC (1.5mm² 3 core) terminated with a UK 13A fused plug
• Available in 10 sizes as standard
Compare
- Additional information
Additional information
| Product Range | IEC 60320 C13 Shuttered Sockets |
|---|---|
| Orientation | Vertical |
| Socket Outlet Type | C13 10A IEC 60320 |
| Number of Sockets | 12 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey Case (RAL 7035), Yellow Panel (RAL 1012) |
| Current Rating | 13A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | IEC 60320 C13 10A (CEE22) |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.47 |
| Height (mm) | 566 |
| Width (mm) | 50 |
| Depth (mm) | 40 |
| Fixing Centres | 549 |
| Digital Power Meter | None |
