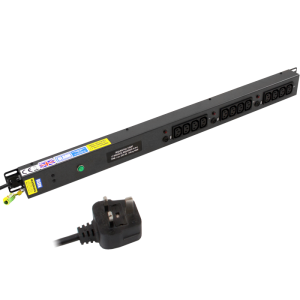

12 Way 10A IEC 60320 C13 Socket Neon Fused Sequential Start Vertical 13A Plug PDU
£306.84 Excl. VAT
Part No. 3271/3M/13A
- Power distribution unit for vertical mounting in 19″ panels with green mains neon and twelve IEC 60320 C13 10A sockets
- When the panel is switched on the first bank of four sockets energise followed by the other two banks of four sockets at 1 second intervals
- A robust mild steel construction with Black RAL 9005 paint finish
- Green mains neon
- Twelve IEC 60320 C13 10A sockets in three banks of four sockets
- Each bank of sockets has its own individual fuse and red neon
- High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
- Voltage 230V AC
- 13A fused plug with 3 metres of cable
- The first 4 sockets switch on together, followed by the other two banks of four at 1 sec intervals
Compare
- Additional information
Additional information
| Product Range | Vertical Sequential Start |
|---|---|
| Orientation | Vertical |
| Socket Outlet Type | C13 10A IEC 60320 |
| Number of Sockets | 12 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | Yes |
| Fuse Rating | 10A |
| Individually Fused | No |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Black (RAL 9005) |
| Current Rating | 13A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | IEC 60320 C13 10A (CEE22) |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.8 |
| Height (mm) | 780 |
| Width (mm) | 62 |
| Depth (mm) | 40 |
| Digital Power Meter | None |
