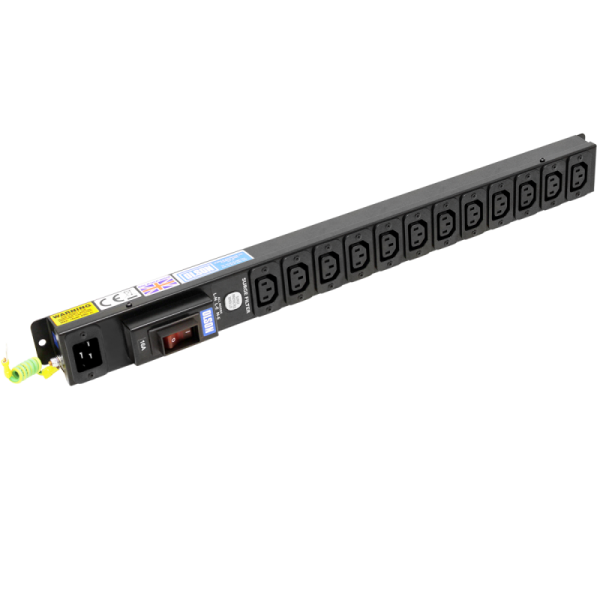

12 Way 10A IEC C13 Sockets C20 Inlet Circuit Breaker Surge Protected PDU - Image 1
12 Way 10A IEC C13 Sockets C20 Inlet Circuit Breaker Surge Protected PDU - Image 2

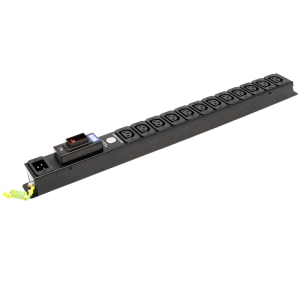

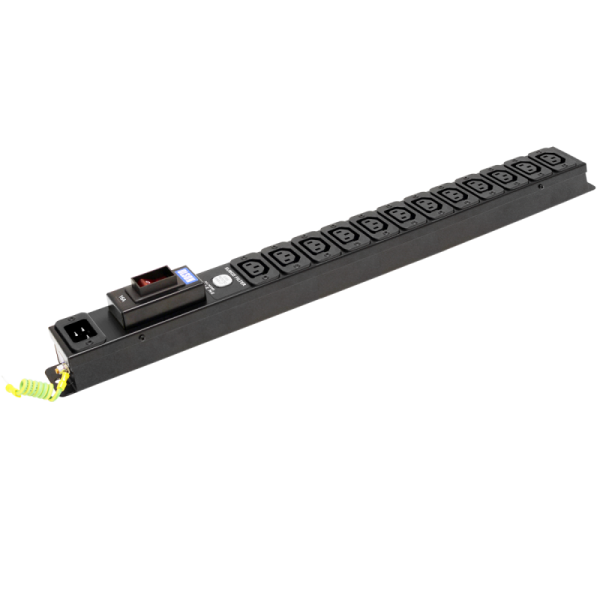

12 Way 10A IEC C13 Sockets C20 Inlet Circuit Breaker Surge Protected PDU - Image 3

12 Way 10A IEC C13 Sockets C20 Inlet Circuit Breaker Surge Protected PDU

12 Way 10A IEC C13 Sockets C20 Inlet Circuit Breaker Surge Protected PDU

£166.98 Excl. VAT

In stock

£166.98 Excl. VAT

Part No. 3227

  • Steel construction finished in black powder coating
  • Brackets on each side for easy fixing/installation
  • 16A IEC 60320 C20 inlet
  • Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
  • High-integrity dual earthing
  • 16A red illuminated circuit breaker
  • Surge Protection with operating voltage 275VAC rms
  • IEC 60320 C13 10A rated Sockets

Surge Filter:

  • The surge filter is provided with a neon light to indicate operation. If the neon is not glowing, the surge filter is no longer operational and must be replaced to maintain over voltage protection
  • All modes L-N, L-E, N-E
  • Maximum operating voltage – 275V rms ac
  • Transient energy absorption – 3 x 140J
  • Transient peak current – (8/20uS) – 6500A
  • Impulse response time – <50nS
  • Varistor voltage @ 1mA dc test current – 430V
  • Maximum clamping voltage @ 100A (8/20uS) – 710V
    • Compare

    Additional information

    Product Range

    Filter / Surge Protection Range
    Orientation

    Vertical
    Socket Outlet Type

    C13 10A IEC 60320
    Number of Sockets

    12
    Neon

    Yes
    Switched

    Main Switch
    Fuse Holder

    No
    Individually Fused

    No
    Cable Length

    No Cable Supplied
    Plug Inlet Type

    Colour

    Black (RAL 9005)
    Current Rating

    16A max
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Manufactured To

    BS 5733
    Socket Outlet Compliance

    IEC 60320 C13 10A (CEE22)
    UKCA / CE Compliant

    Yes
    RoHs Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    1.4
    Height (mm)

    608
    Width (mm)

    53
    Depth (mm)

    40; 75 inc CB
    Digital Power Meter

    None
