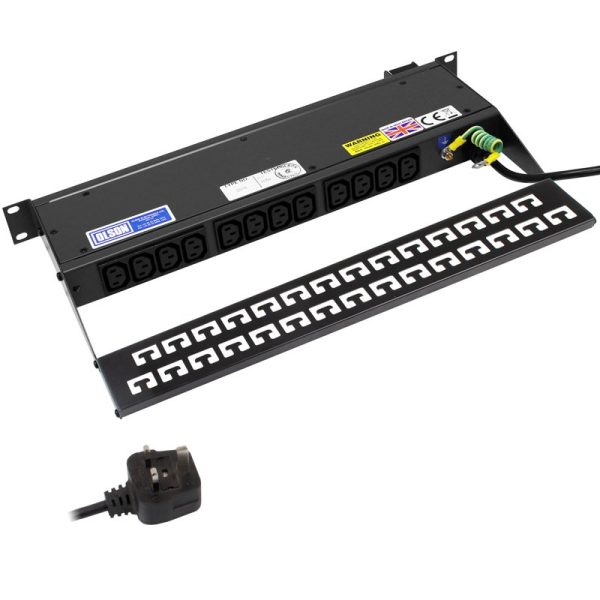

12 Way 19″ 1U Horizontal Rack Mount IEC 60320 C13 Sockets Main Switch Fused Sequential Start Cable Management PDU
£242.64 Excl. VAT
Part No. 3251/10
- 13A input connector with 2m of cable
- A robust mild steel construction with Black RAL 9005 paint finish
- Illuminated 2 pole on-off switch rated 16A with shroud protection
- Overall depth 255mm
- Current 10A max
- High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
- Maximum output current per 4 sockets 10A
- Three groups of four IEC 60320 sockets are switched on at 1 second intervals minimising high-inrush currents
Compare
- Additional information
Additional information
| Product Range | Sequential Start |
|---|---|
| Orientation | Horizontal |
| Socket Outlet Type | C13 10A IEC 60320 |
| Number of Sockets | 12 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | Yes |
| Fuse Rating | 10A |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Black (RAL 9005) |
| Current Rating | 10A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | IEC 60320 C13 10A (CEE22) |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.89 |
| Height (mm) | 44.4 (1U) |
| Width (mm) | 482.6 (19") |
| Depth (mm) | 255 |
| Digital Power Meter | None |
