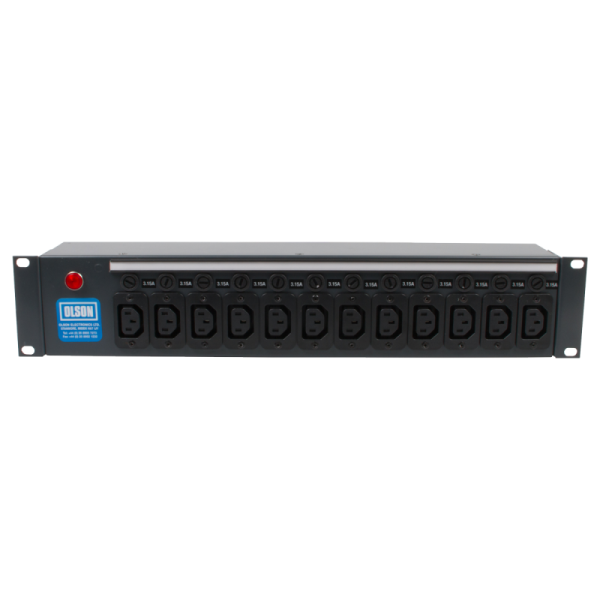

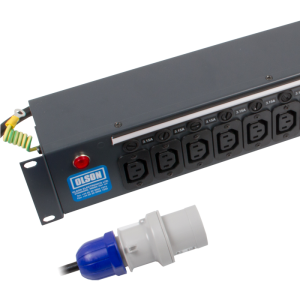

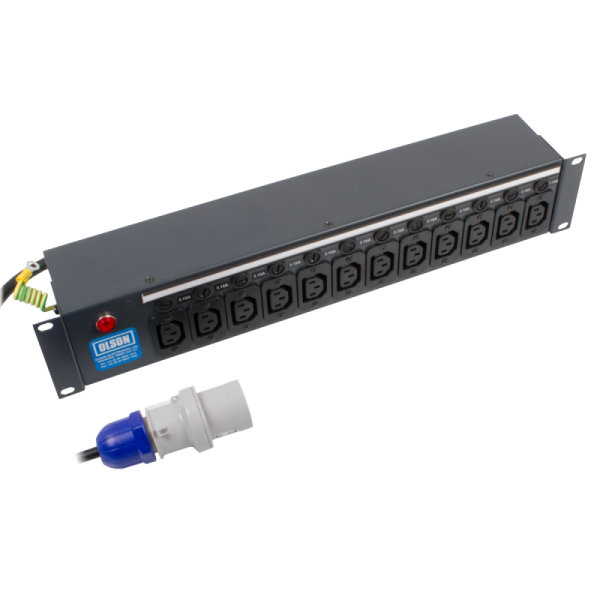

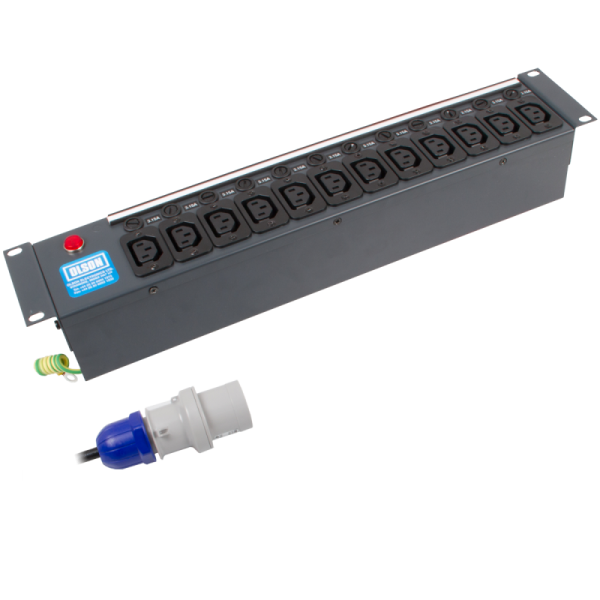

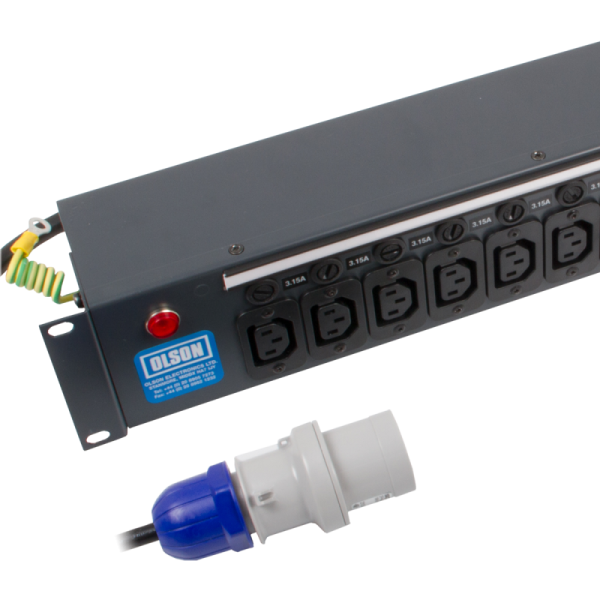

12 Way 19″ 2U 10A IEC 60320 C13 Individually Fused 16A Plug PDU
£238.48 Excl. VAT
Part No. KNBT/16
- A robust mild steel construction
- Black RAL 9005 paint finish
- 19″ 2U (88.8mm) high
- IEC 60320C13 10A sockets with identity/designation strip
- Internal wiring 32A rating
- High-integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
- Individual 3.15A 20mm fuses fitted as standard
- Identity strip for marking individual circuits
- 3m of 3 core cable with a 16A IEC 60309 (IEC309 / BS4343 / Commando) plug
Compare
- Additional information
Additional information
| Product Range | 19" Rack Range – C13 Sockets |
|---|---|
| Orientation | Horizontal |
| Socket Outlet Type | C13 10A IEC 60320 |
| Number of Sockets | 12 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | Yes |
| Fuse Rating | 3.15A |
| Individually Fused | Yes |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Black (RAL 9005) |
| Current Rating | 16A max. |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | IEC 60320 C13 10A |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.354 |
| Height (mm) | 88.8 (2U) |
| Width (mm) | 482.6 (19") |
| Depth (mm) | 78 |
| Digital Power Meter | None |
