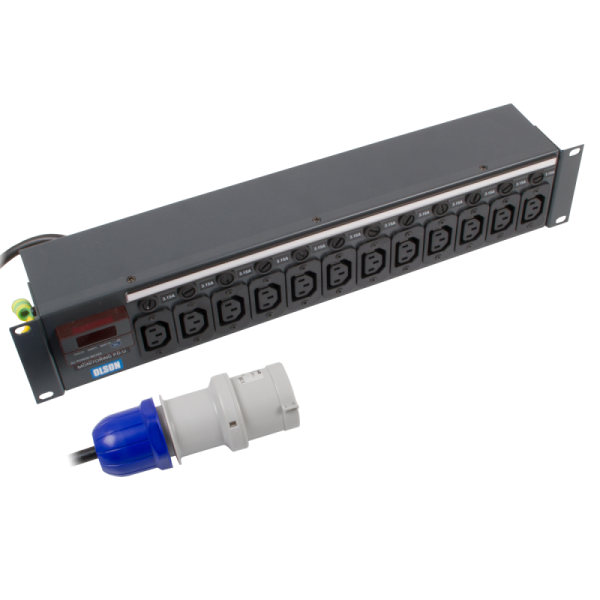

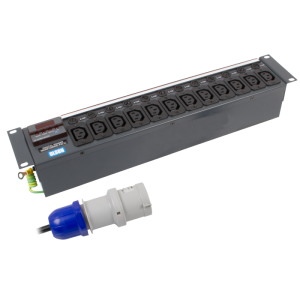

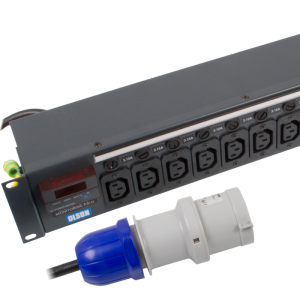

12 Way 19″ 2U 10A Power Metered IEC 60320 C13 Individually Fused 32A Plug PDU

12 Way 19″ 2U 10A Power Metered IEC 60320 C13 Individually Fused 32A Plug PDU

£354.54 Excl. VAT

In stock

£354.54 Excl. VAT

Part No. PM/KNBT/32

  • A robust mild steel construction
  • Black RAL 9005 paint finish
  • 19″ 2U (88.8mm) high
  • 78mm deep (not including the cable/gland or earth tag)
  • IEC 60320 C13 10A shuttered sockets with identity/designation strip
  • Internal wiring 32A rating
  • High-integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
  • Individual 3.15A 20mm fuses fitted as standard
  • 3m of 3 core cable with a 32A IEC 60309 (IEC309 / BS4343 / Commando) plug
  • Identity strip for marking individual circuits

The Deluxe Power Meter Features:

  • Monitor Amps, volts, watts and P.F. (all True RMS)
  • The ability to either automatically scroll through the four values or to select the parameter to be displayed
  • 4x LEDs to easily identify what parameter is being measured
  • Accuracy 1% amps, volts, 2% Watts, 3% P.F.
    • Compare

    Additional information

    Previous Part No.

    AM/KNBT/32 – AM3280/32 – PM3280/32
    Product Range

    Metered Range
    Orientation

    Horizontal
    Socket Outlet Type

    C13 10A IEC 60320
    Number of Sockets

    12
    Neon

    No
    Switched

    Unswitched
    Fuse Holder

    Yes
    Fuse Rating

    3.15A
    Individually Fused

    Yes
    Cable Length

    3M
    Plug Inlet Type

    Colour

    Black (RAL 9005)
    Current Rating

    32A max.
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Manufactured To

    BS 5733
    Socket Outlet Compliance

    IEC 60320 C13 10A
    Cable Compliance

    BS 6500
    UKCA / CE Compliant

    Yes
    RoHs Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    2.76
    Height (mm)

    88.8 (2U)
    Width (mm)

    482.6 (19")
    Depth (mm)

    78
    Digital Power Meter

    Digital Power Meter
