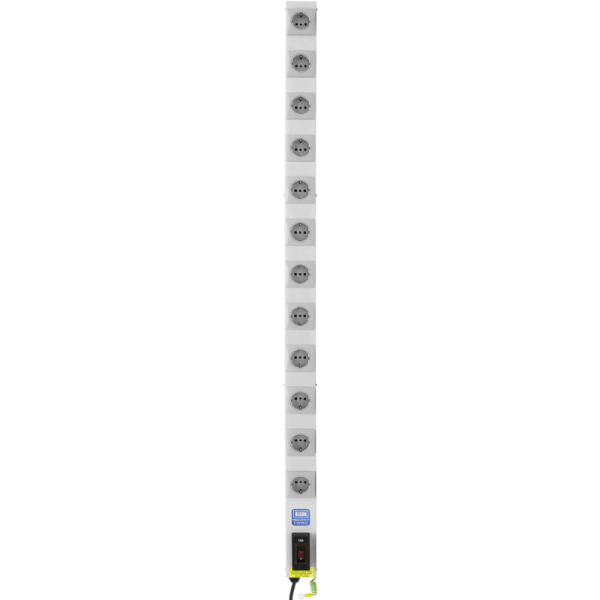

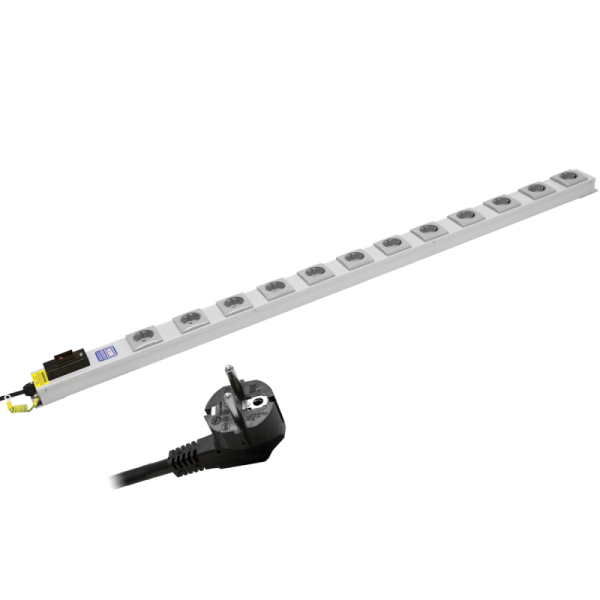

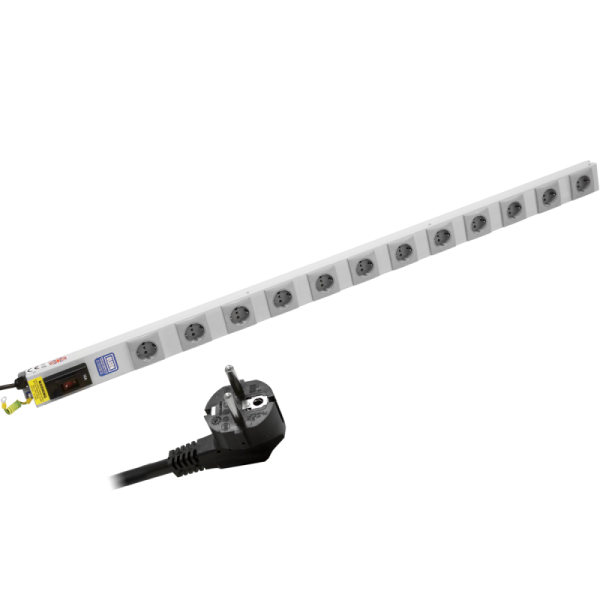

12 Way Vertical 16A Schuko Circuit Breaker CEE 7/7 Plug PDU
£176.21 Excl. VAT
Part No. R/12/C.GER
- A robust mild steel construction with light grey RAL 7035 paint finish
- Slim size only 65mm wide x 38mm deep
- 16A double pole red illuminated circuit breaker as standard, please contact us to specify if you require a different current rating circuit breaker, can also be supplied without a circuit breaker
- Brackets either side for easy fixing
- Internal wiring 2.5mm²
- Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
- 2m 1.5mm² 3 core PVC cable terminated with a country coordinated plug
Compare
- Additional information
Additional information
| Product Range | International Range – "C" Box |
|---|---|
| Orientation | Vertical |
| Socket Outlet Type | Schuko 16A CEE 7/3 |
| Number of Sockets | 12 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 16A |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | CEE 7/3 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 3.7 |
| Height (mm) | 1317 |
| Width (mm) | 65 |
| Depth (mm) | 38 |
| Fixing Centres | 1302 |
| Digital Power Meter | None |
