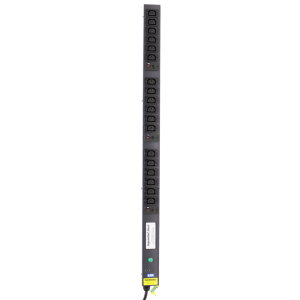

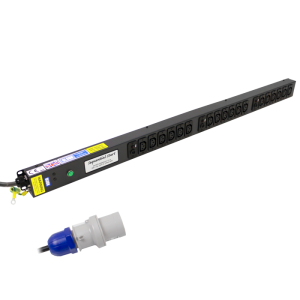

18 Way 10A IEC 60320 C13 Socket Fused Sequential Start Vertical 16A Plug PDU
£319.90 Excl. VAT
Part No. 3272/16
• Power distribution unit for vertical mounting in 19″ panels with green mains neon and 18 IEC 60320 C13 10A sockets. When the panel is switched on the first bank of six sockets energise followed by the other two banks of six sockets at 1 second intervals
• A robust mild steel construction with Anthracite RAL 7016 paint finish
• Green mains neon
• Eighteen IEC 60320 C13 10A sockets in three banks of six sockets
• Each bank of sockets has its own individual fuse and red neon
• High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• Voltage 230V AC
• The first 6 sockets switch on together, followed by the other two banks of six at 1 sec intervals
- Additional information
Additional information
| Product Range | Vertical Sequential Start |
|---|---|
| Orientation | Vertical |
| Socket Outlet Type | C13 10A IEC 60320 |
| Number of Sockets | 18 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | Yes |
| Fuse Rating | 10A |
| Individually Fused | No |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Anthracite (RAL 7016) |
| Current Rating | 10A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | IEC 60320 C13 10A (CEE22) |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.8 |
| Height (mm) | 1060 |
| Width (mm) | 62 |
| Depth (mm) | 40 |
| Digital Power Meter | None |
