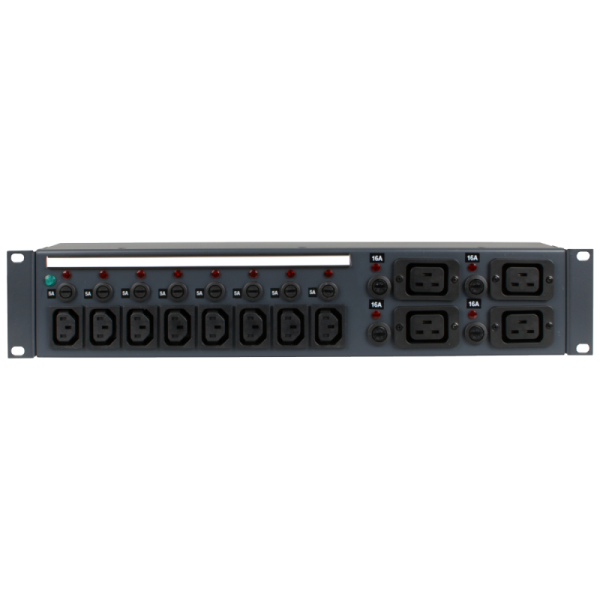

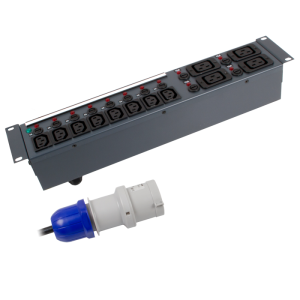

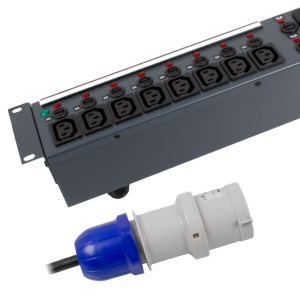

19″ 2U 8x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Individual Neon & Fused 32A Plug PDU
£358.55 Excl. VAT
Part No. COM8-4/RFN/32
• A robust mild steel construction
• Anthracite RAL 7016 paint finish
• Internal wiring rated 32A
• High-integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• 8x IEC 60320 C13 10A and 4x IEC320 C19 sockets, each individually fused with a neon
• 3m of 3 core cable terminated with a 32A IEC 60309 (IEC309 / BS4343 / Commando) Plug
• Identity strip for marking individual circuits
- Additional information
Additional information
| Previous Part No. | COM8+4/RFN/32 |
|---|---|
| Product Range | Combination PDU Range |
| Orientation | Horizontal |
| Socket Outlet Type | C13 10A + C19 16A |
| Number of Sockets | 8 + 4 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | Yes |
| Fuse Rating | C13: 5A – C19: 16A |
| Individually Fused | Yes |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Anthracite (RAL 7016) |
| Current Rating | 32A max. |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Socket Outlet Compliance | 10A Socket : IEC 60320 C13 – 16A Socket: IEC 60320 C19 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 3.08 |
| Height (mm) | 88.8 (2U) |
| Width (mm) | 482.6 (19") |
| Depth (mm) | 80 (120 inc gland) |
| Digital Power Meter | None |
