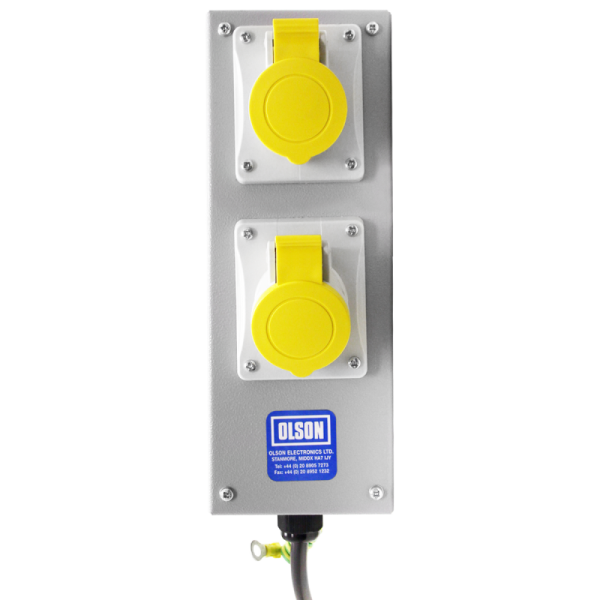

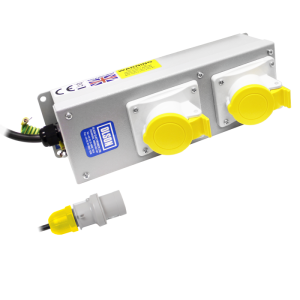

2 Way 110V 16A BS4343 Socket PDU
£110.60 Excl. VAT
Part No. 16A/2Y/110V
- ALL units housed in splash proof metal boxes
- Supplied complete with 3m lead and 16A plug
- 3 Core 2.5mm² Arctic Grade cable
- Sockets: 16 amp 2P+E Single phase supply
- Sockets can be used in conjunction with all manufacturer’s plugs designed to IEC 60309 (IEC309 / BS4343 / CEE17)
- Maximum load 16A
- Longer cables available to order
Compare
- Additional information
Additional information
| Product Range | Industrial Range |
|---|---|
| Orientation | Vertical |
| Socket Outlet Type | 16A IEC 60309 (IEC309 / BS4343) |
| Number of Sockets | 2 |
| Neon | No |
| Switched | Unswitched |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 32A max. |
| Operating Voltage | Normal Operating Voltage: 110VAC – Maximum Operating Voltage: 125VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | IEC60309 / IEC309 / BS4343 / CEE17 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.88 |
| Height (mm) | 290 |
| Width (mm) | 100 |
| Depth (mm) | 60 |
| Digital Power Meter | None |
