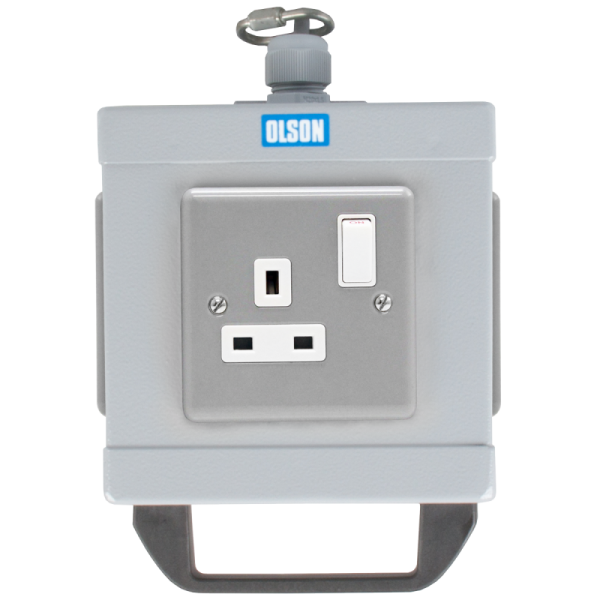

2 Way 13A Switched Metal Clad Socket Suspended Service Unit

2 Way 13A Switched Metal Clad Socket Suspended Service Unit

From £153.46 Excl. VAT

In stock

From £153.46 Excl. VAT

Part No. SUS13A/02/MC

• Welded robust steel case finished in hammer grey RAL 7040
• Metal clad sockets for additional impact protection
• 20mm nylon cable entry fitted
• Handles in black polyamide
• Internal wiring (2.5mm²) rated 20A
• Supplied with 4mm zinc plated chain link to hang the unit from
• Cable and chains available separately

The retraction system and sprung cable for this suspended unit can be added using the drop-down options below.

Clear
CompareCompare

Additional information

Product Range

Suspended Units

Orientation

Suspended

Socket Outlet Type

UK 13A

Number of Sockets

2

Neon

No

Switched

Individually Switched

Fuse Holder

No

Individually Fused

No

Cable Length

No Cable Supplied

Plug Inlet Type

Colour

Hammer Grey (RAL 7004)

Current Rating

13A

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

13 Amp Sockets – BS 1363

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

1.832

Height (mm)

147

Width (mm)

147

Depth (mm)

147

Digital Power Meter

None

Sus/Retract

None, Sus/Retract

Cablespring

None, 1.5MM, 2.5MM, 4.00MM

Olson_SUS-RETRACT

Suspended Unit Retractor & Sprung Cable

£145.81 Excl. VAT

Part No. SUS/RETRACT

(Not Sold Separately)

The Retractor option has been introduced to complement the strengths of the Suspended PDU?s further, the Retractor option allows the Suspended Unit to be lowered to the required working position, locked in place and then retracted back up when it is no longer in use. The rise and fall operation of the product is also a much safer and easier option, particularly in busy environments.

  • Adjustable spring tension balancer
  • End stop can be moved to adjust the starting height
  • Maximum distance of travel is 2M
  • Cable length 7 Meters in total, 5M of straight Flex and 2M of sprung cable
  • Three cable types are available (1.5mm, 2.5mm and 4mm) to suit the rating of the socket(s)

Sprung Cable Part No(s).

CABLESPRING/1.5 – CABLESPRING/2.5 – CABLESPRING/4.0

Product RangeSuspended Units
OrientationSuspended
Plug Inlet Type
Cable ComplianceBS 6500
CE ComplianceApproved to – EN 60950 CE
RoHs CompliantYes
Country of ManufactureUnited Kingdom
Weight KGs4
