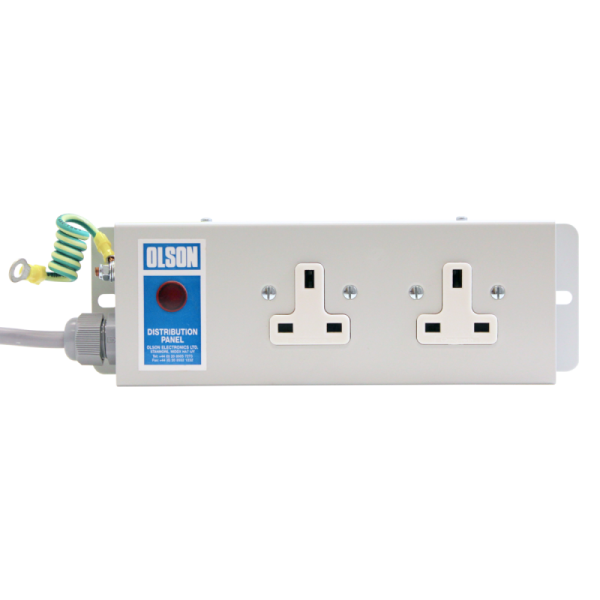

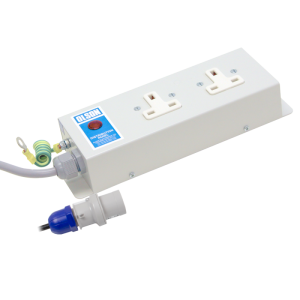

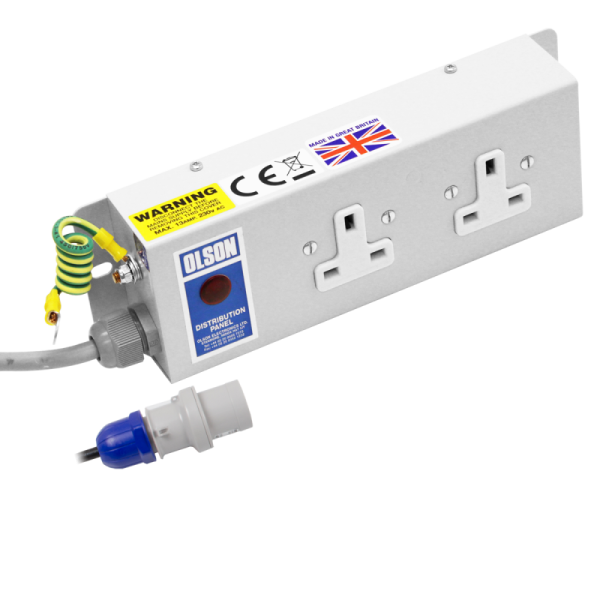

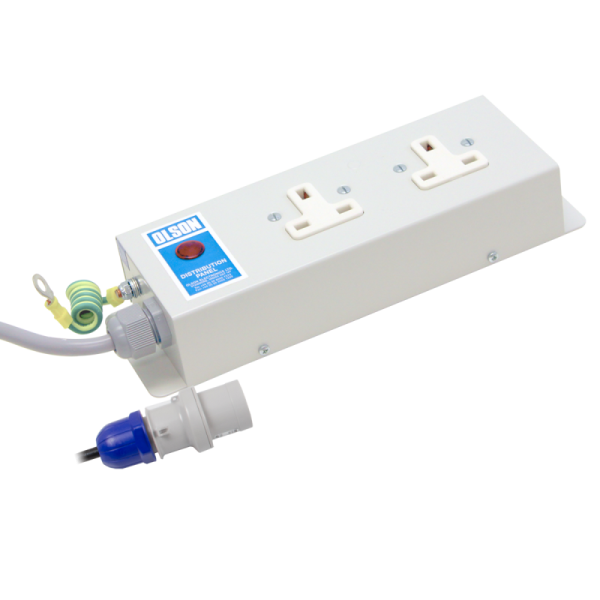

2 Way 13A Unswitched Socket Neon 16A Plug PDU
£67.66 Excl. VAT
Part No. N13A/02/3M/16A
• The Olson Slim Range is ideal for wall or floor mounting and available in 10 different sizes as standard
• A robust mild steel construction
• Light grey RAL 7035 paint finish
• Internal wiring 2.5mm² – 20A rating
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Red neon “mains on” indicator
• Brackets on each side for easy fixing/installation
• 3m of 3 core cable with a 16A IEC 60309 (IEC309 / BS4343 / Commando) plug
- Additional information
Additional information
| Previous Part No. | N13A/2/3M/16A – N13A/2/16 |
|---|---|
| Product Range | 13A Slim Range |
| Orientation | Horizontal |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 2 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | No |
| Fuse Link | Fuse Link – BS 1363 |
| Individually Fused | No |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 16A max. |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.236 |
| Height (mm) | 78 |
| Width (mm) | 232 |
| Depth (mm) | 45 |
| Fixing Centres | 217 |
| Digital Power Meter | None |
