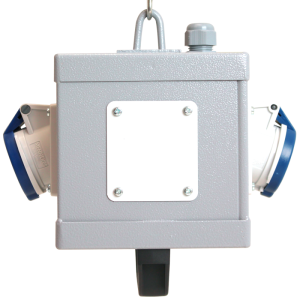

2 Way 16A BS4343 Socket Suspended Service Unit
From £115.36 Excl. VAT
Part No. BSUS16/02
• Welded robust steel case finished in hammer grey RAL 7040
• 20mm nylon cable entry fitted
• Handles in black polyamide
• Internal wiring (2.5mm²) rated 20A
• Supplied with 4mm zinc plated chain link to hang the unit from
• Cable and chains available separately
The retraction system and sprung cable for this suspended unit can be added using the drop-down options below.
Compare
- Additional information
Additional information
| Previous Part No. | BSUS16/2 |
|---|---|
| Product Range | Suspended Units |
| Orientation | Suspended |
| Socket Outlet Type | 16A IEC 60309 (IEC309 / BS4343) |
| Number of Sockets | 2 |
| Neon | No |
| Switched | Unswitched |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | No Cable Supplied |
| Plug Inlet Type | |
| Colour | Hammer Grey (RAL 7040) |
| Current Rating | 16A max. |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | BS 4343 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.88 |
| Height (mm) | 147 |
| Width (mm) | 147 |
| Depth (mm) | 147 |
| Digital Power Meter | None |
| Sus/Retract | None, Sus/Retract |
| Cablespring | None, 1.5MM, 2.5MM, 4.00MM |
