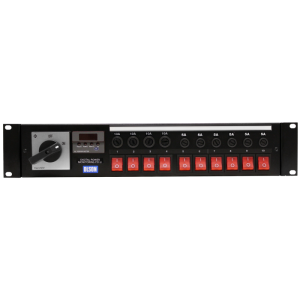

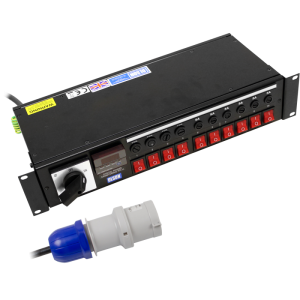

2U 19″ Power Metered 6x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket PDU

2U 19″ Power Metered 6x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket PDU

£524.64 Excl. VAT

In stock

£524.64 Excl. VAT

Part No. PM3277/32

• A robust mild steel construction, with a black paint finish
• 19″ 2U (88.8mm) high, 180mm deep (not including the cable/gland or earth tag)
• 4x IEC 60320 C19 16A sockets and 6x IEC 60320 C13 10A sockets mounted to the rear
• Sockets individually fused C19 (10A rated as standard) and C13 (5A rated as standard)
• Mains on/off switch
• Individual front mounted illuminated double pole switches
• Identity strip for marking individual circuits
• High-integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• 3m of 3 core cable and a 32A IEC309 (BS4343) plug
• A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:
• Monitor Amps, volts, watts and P.F. (all True RMS)
• The ability to either automatically scroll through the four values or to select the parameter to be displayed
• 4x LEDs to easily identify what parameter is being measured
• Accuracy 1% amps, volts, 2% Watts, 3% P.F.


Additional information

Previous Part No.


Product Range

Switching Range / Meter Range / Combination PDU Range



Socket Outlet Type

C13 10A + C19 16A

Number of Sockets

4 + 6




Individually Switched

Fuse Holder


Fuse Rating

C13: 5A – C19: 10A

Individually Fused


Cable Length


Plug Inlet Type


Black (RAL 9005)

Current Rating

32A max.

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

10A Sockets – IEC 60320 C13

Cable Compliance

BS 6500

UKCA / CE Compliant


RoHs Compliant


Country of Manufacture

United Kingdom

Weight KGs


Height (mm)

88.8 (2U)

Width (mm)

482.6 (19")

Depth (mm)


Digital Power Meter

Digital Power Meter
