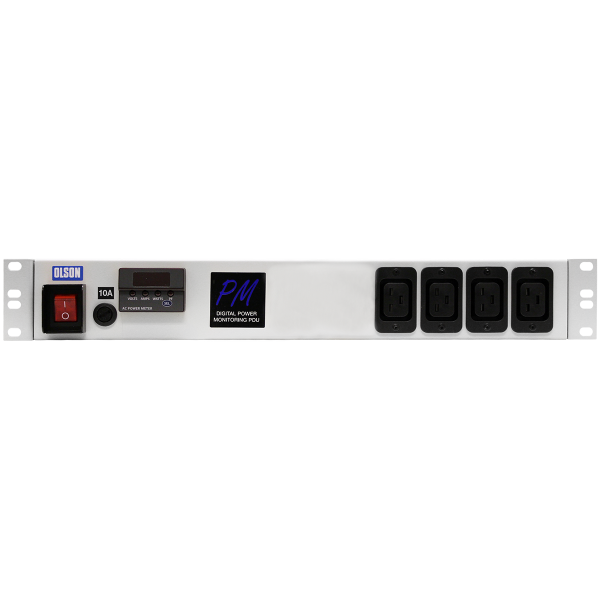

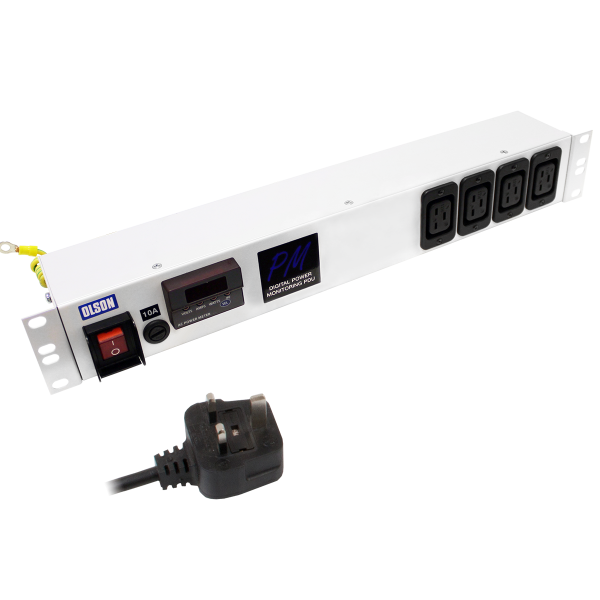

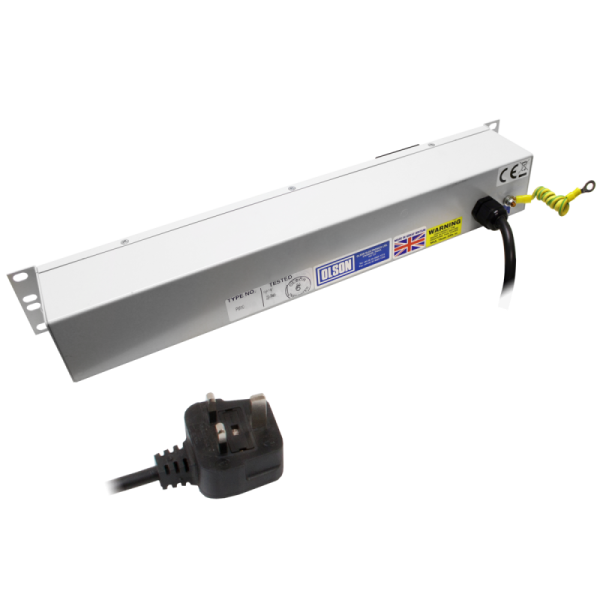

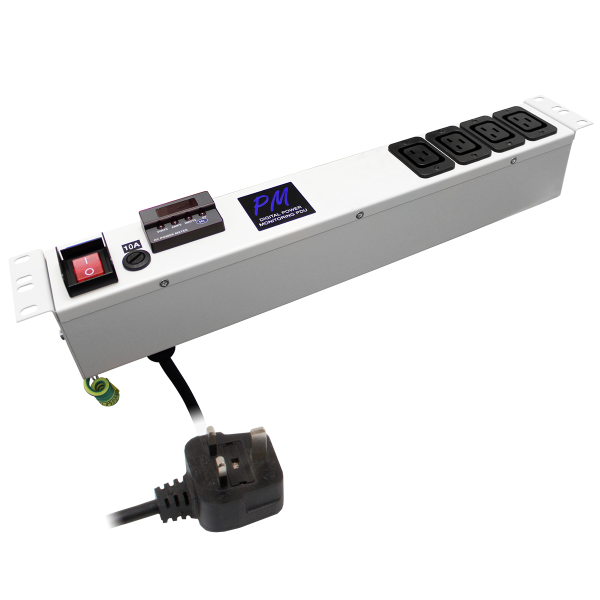

4 Way 1.5U 19″ Power Metered 16A IEC 60320 C19 Main Switch Fused PDU
£128.98 Excl. VAT
Part No. PM1045/13
• Mains double pole neon indicated switch
• IEC 60320 C19 16A sockets
• A robust mild steel construction
• 19″ wide 1.5U panel
• 30A digital power meter
• A digital meter with easy to read 9.4mm high digits
The Deluxe Power Meter Features:
• Monitor Amps, volts, watts and P.F. (all True RMS)
• The ability to either automatically scroll through the four values or to select the parameter to be displayed
• 4x LEDs to easily identify what parameter is being measured
• Accuracy 1% amps, volts, 2% Watts, 3% P.F.
- Additional information
Additional information
| Previous Part No. | AM1045/13 |
|---|---|
| Product Range | PM Meter Range |
| Orientation | Horizontal |
| Socket Outlet Type | C19 16A IEC 60320 |
| Number of Sockets | 4 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | Yes |
| Fuse Rating | 16A |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 16A |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | CSA, IEC 60320 C19 BEAB, UL, VDE |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.766 |
| Height (mm) | 66.6 (1.5U) |
| Width (mm) | 482.6 (19") |
| Depth (mm) | 70 |
| Digital Power Meter | Digital Power Meter |
