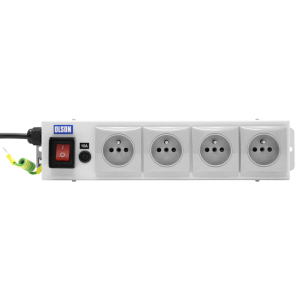

4 Way 10A French / Belgian Fused Illuminated Main Switch PDU
£68.46 Excl. VAT
Part No. N10A/04.FRE
• A robust mild steel construction with light grey RAL 7035 paint finish
• Internal wiring 20A rating (2.5mm²)
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Illuminated double pole switch with shroud
• Brackets on each side for easy fixing and installation
• 2m 1.5mm² 3 core PVC cable terminated with CEE 7/7 plug
• Specials can be made to order
Compare
- Additional information
Additional information
| Previous Part No. | N10A/4 FRE |
|---|---|
| Product Range | International Range |
| Orientation | Horizontal |
| Socket Outlet Type | French / Belgian 16A CEE 7/5 |
| Number of Sockets | 4 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | Yes |
| Fuse Rating | 10A |
| Fuse Link | ASTA BS 1362 |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 10A |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | CEE 7/5 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.5 |
| Height (mm) | 78 |
| Width (mm) | 348 |
| Depth (mm) | 45 |
| Fixing Centres | 333 |
| Digital Power Meter | None |
