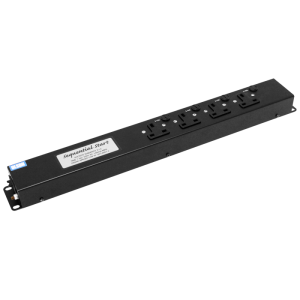

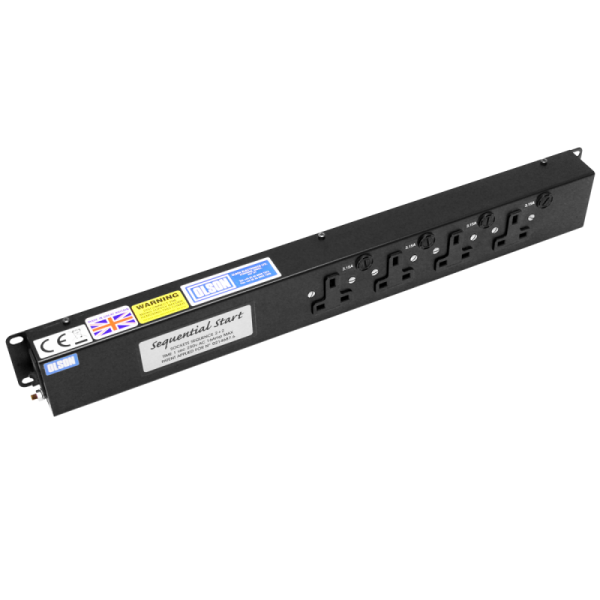

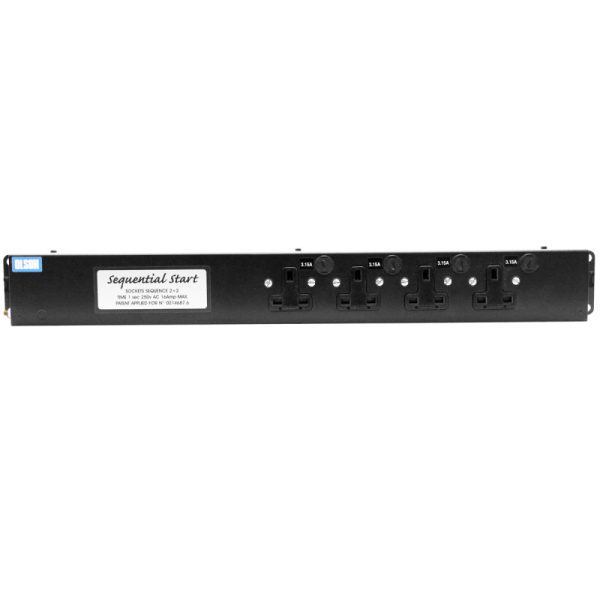

4 Way 13A Individually Fused Sequential Start Wieland Connect PDU
£126.22 Excl. VAT
Part No. SEQ/4024
• Sequential Start Power Modules with Integral Switching
• This range of products features integral power switching. By utilising ‘smart’ switching technology, this device automatically powers up pairs of sockets sequentially on the module, reducing power surges on your system and protecting your equipment

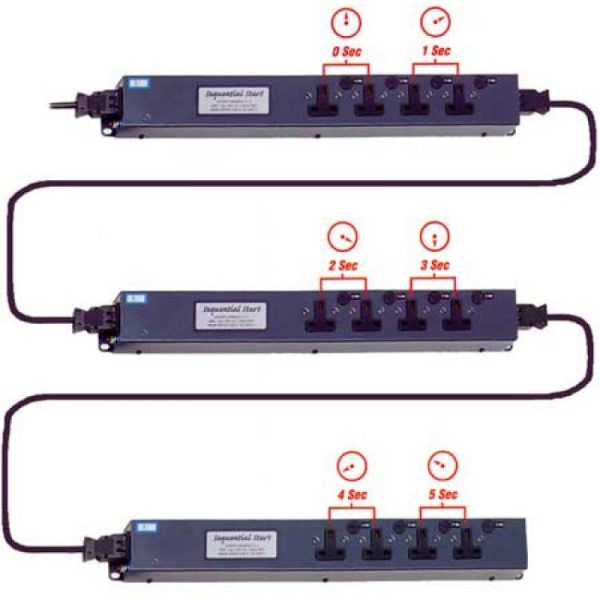

• More than one sequential module can be linked together in-line, up to a maximum of 16A loading. When linked together, the power is sequentially turned on every second to each pair of sockets in line from start to finish of the module chain (see diagramin photo library)
• Office power modules with 4 individually fused sockets at 3.15A and Sequential Integral switching, minimising high in-rush currents
• Sockets sequence 2 + 2 at 1 second intervals
• Wieland ST18 connection system
• External earth leads for use on earthed furniture
• Voltage 230V AC
• Current 16A max
• High integrity dual earthing
• All metal construction
• Patent No. GB2390237
• Suitable Wieland connectors available separately
- Additional information
Additional information
| Product Range | Desk Cable Management / Sequential Start |
|---|---|
| Orientation | Horizontal |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 4 |
| Neon | No |
| Switched | Unswitched |
| Fuse Holder | Yes |
| Fuse Rating | 3.15A |
| Individually Fused | Yes |
| Cable Length | No Cable Supplied |
| Plug Inlet Type | |
| Colour | Black (RAL 9005) |
| Current Rating | 16A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 and BS 6396 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.48 |
| Height (mm) | 62 |
| Width (mm) | 528 |
| Depth (mm) | 40 |
| Digital Power Meter | None |
