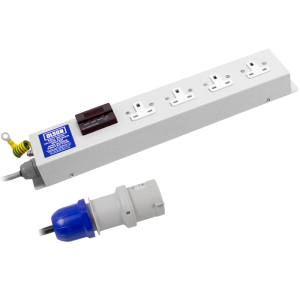

4 Way 13A Power Metered & Surge Protected 32A Plug PDU

4 Way 13A Power Metered & Surge Protected 32A Plug PDU

£149.98 Excl. VAT

In stock

£149.98 Excl. VAT

Part No. PM/N13A/4/32

• Incorporating the Olson Deluxe Power Meter
• Surge Protection Varistors
• A robust steel construction
• Light grey RAL 7035 paint finish
• High integrity dual earthing and external M5 earth stud with 250mm long earth lead
• 3m of 3 core cable with a 32A IEC 60309 (IEC309 / BS4343 / Commando) plug
• A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:
• Monitor Amps, volts, watts and P.F. (all True RMS)
• The ability to either automatically scroll through the four values or to select the parameter to be displayed
• 4x LEDs to easily identify what parameter is being measured
• Accuracy 1% amps, volts, 2% Watts, 3% P.F.

View cart
Compare

Additional information

Product Range

Meter Range

Orientation

Horizontal

Socket Outlet Type

UK 13A

Number of Sockets

4

Neon

No

Switched

Unswitched

Fuse Holder

No

Individually Fused

No

Cable Length

3M

Plug Inlet Type

Colour

Light Grey (RAL 7035)

Current Rating

32A max.

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

13 Amp Sockets – BS 1363

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

2.38

Height (mm)

78

Width (mm)

422

Depth (mm)

45

Fixing Centres

405
