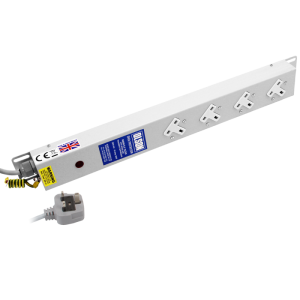

4 Way 13A Sockets Angled Left RF Filtered Surge Protected Neon PDU

4 Way 13A Sockets Angled Left RF Filtered Surge Protected Neon PDU

£111.51 Excl. VAT

In stock

£111.51 Excl. VAT

Part No. FU04LH/N

• Neon incoming power indicator
• Strong steel case finished in light grey RAL 7035
• Terminated with 2m of 3 core 1.5mm² cable and 13A fused plug
• Internal wiring 2.5mm² rated 20A
• Earth bonding for maximum safety
• External M5 earth stud with 250mm earth lead
• The essential power distribution source for 19″ rack mounting systems
• The 45 degree angled sockets allow easy, tidy installation

Surge Filter:
• All modes L-N, L-E, N-E
• Maximum operating voltage – 275V rms ac
• Transient energy absorption – 3 x 140J
• Transient peak current – (8/20uS) – 6500A
• Impulse response time – <50nS
• Varistor voltage @ 1mA dc test current – 430V
• Maximum clamping voltage @ 100A (8/20uS) – 710V

RF Filter:
• Operating voltage up to 250V at max 400Hz
• Filter rated current 10A @ 400ºC, 11.5A @ 25ºC
• Leakage current 2 x 0.2mA max @ 220V 50Hz
• Fitted with ZNR voltage transient and earthline choke
• Standard spec. Z280G
• Max continuous voltage 320V AC rms @ 25ºC
• Max continuous voltage 416V DC @25ºC
• Varistor 450V min @ 1mA
• Energy 140 Joules 10/10000
• 800V clamping voltage @ 100A
• Max 800mW continuous
• UL, CSA, VDE

View cart
Compare

Additional information

Previous Part No.

FU4LH/N

Product Range

13A with Sockets Angled 45? Left or Right with Filter

Orientation

Vertical

Socket Outlet Type

UK 13A

Number of Sockets

4

Neon

Yes

Switched

Unswitched

Fuse Holder

No

Individually Fused

No

Cable Length

2M

Plug Inlet Type

Colour

Light Grey (RAL 7035)

Current Rating

13A max

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

13 Amp Sockets – BS 1363

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

1.644

Height (mm)

566

Width (mm)

62

Depth (mm)

40

Digital Power Meter

None
