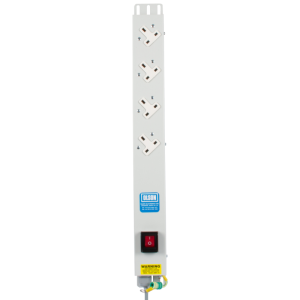

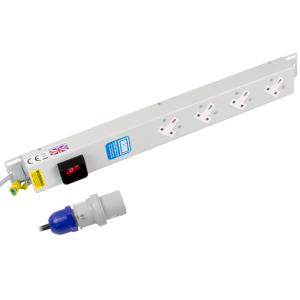

4 Way 13A Sockets Angled Right Illuminated Main Switch 16A Plug PDU
£80.63 Excl. VAT
Part No. 04RH/MS/3M/16A
• Illuminated double pole power switch
• Strong steel case finished in light grey RAL 7035
• 3m of 3 core cable with a 16A IEC 60309 (IEC309 / BS4343 / Commando) plug
• Internal wiring rated 20A
• Earth bonding for maximum safety
• External M5 earth stud with 250mm earth lead
• The essential power distribution source for 19″ rack mounting systems
• Ideal for vertical use and available in 8 different sizes
• The 45 degree angled sockets allow easy, tidy installation
Compare
- Additional information
Additional information
| Product Range | Left/Right Cabled Distribution Panels |
|---|---|
| Orientation | Vertical |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 4 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 13A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.84 |
| Height (mm) | 62 |
| Width (mm) | 536 |
| Depth (mm) | 40 |
| Digital Power Meter | None |
