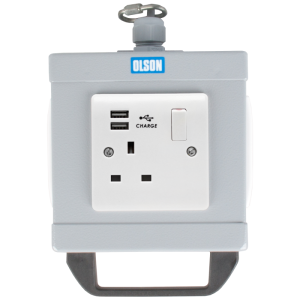

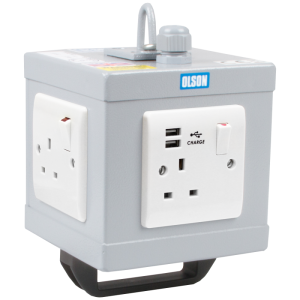

4 Way 13A Switched Socket + 2 USB Charger Suspended Service Unit
From £164.40 Excl. VAT
Part No. SUS13A/04/1USB
- Welded robust steel case finished in hammer grey RAL 7040
- 20mm nylon cable entry fitted
- Handles in black polyamide
- Internal wiring (2.5mm²) rated 20A
- Supplied with 4mm zinc plated chain link to hang the unit from
- USB Sockets are 5V with total load 2A combined (if one device is plugged in, that device will receive the total load, if two devices are plugged in the load is split between them)
- Cable and chains available separately
The retraction system and sprung cable for this suspended unit can be added using the drop-down options below.
- Additional information
- Suspended Unit Retractor & Sprung Cable
Additional information
| Previous Part No. | SUS13A/4/1USB |
|---|---|
| Product Range | Suspended Units / USB Range |
| Orientation | Suspended |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 4 |
| Neon | No |
| Switched | Individually Switched |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | No Cable Supplied |
| Plug Inlet Type | |
| Colour | Hammer Grey (RAL 7040) |
| Current Rating | 13A |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.872 |
| Height (mm) | 147 |
| Width (mm) | 147 |
| Depth (mm) | 147 |
| Digital Power Meter | None |
| Sus/Retract | None, Sus/Retract |
| Cablespring | None, 1.5MM, 2.5MM, 4.00MM |
| Ceiling Fixing | Ceiling Fixing, None |
| Extension Strap | 1M, 2M, 3M, 4M, None |
 |
 |
 |
Suspended Unit Retractor & Sprung Cable
£155.73 Excl. VAT
Part No. SUS/RETRACT
(Not Sold Separately)
The Retractor option has been introduced to complement the strengths of the Suspended PDUs further, the Retractor option allows the Suspended Unit to be lowered to the required working position, locked in place and then retracted back up when it is no longer in use. The rise and fall operation of the product is also a much safer and easier option, particularly in busy environments.
- Adjustable spring tension balancer
- End stop can be moved to adjust the starting height
- Maximum distance of travel is 2M
- Cable length 7 Meters in total, 5M of straight Flex and 2M of sprung cable
- Three cable types are available (1.5mm, 2.5mm and 4mm) to suit the rating of the socket(s)
Sprung Cable Part No(s).
CABLESPRING/1.5 - CABLESPRING/2.5 - CABLESPRING/4.0
| Product Range | Suspended Units |
|---|---|
| Orientation | Suspended |
| Plug Inlet Type | Direct Wire |
| Cable Compliance | BS 6500 |
| CE Compliance | Approved to - EN 60950 CE |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 4 |
