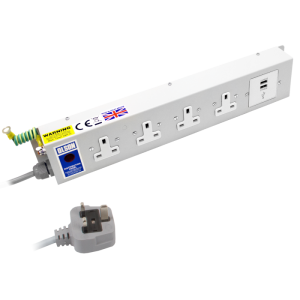

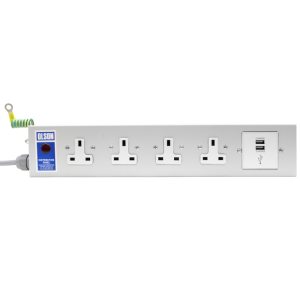

4 Way 13A Unswitched Socket + 2 USB Charger Neon 13A Plug PDU
£113.41 Excl. VAT
Part No. N13A/04/1USB
- The Olson USB Slim Range is ideal for wall or floor mounting and available in 10 different sizes as standard
- A robust mild steel construction
- Light grey RAL 7035 paint finish
- Internal wiring 2.5mm² – 20A rating
- Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
- Red neon “mains on” indicator
- Brackets on each side for easy fixing/installation
- 2m cable – PVC (1.5mm² 3 core) terminated with a 13A fused plug
- USB Sockets are 5V with total load 2A combined (if one device is plugged in, that device will receive the total load, if two devices are plugged in the load is split between them)
Compare
- Additional information
Additional information
| Previous Part No. | N13A/4/1USB |
|---|---|
| Product Range | 13A Slim Range / USB Range |
| Orientation | Horizontal |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 4 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | No |
| Fuse Link | Fuse Link – BS 1363 |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 13A max. |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.444 |
| Height (mm) | 78 |
| Width (mm) | 416 |
| Depth (mm) | 45 |
| Fixing Centres | 401 |
| Digital Power Meter | None |
