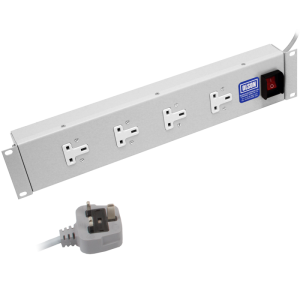

4 Way 19″ 2U Horizontal 13A Angled Left 90??? Illuminated Main Switch Rack Mount PDU
£70.76 Excl. VAT
Part No. 90/13A/04/RMSLH
• 2U High
• A robust mild steel construction with light grey RAL 7035 paint finish
• Illuminated mains double pole on/off switch with shroud
• Internal wiring 2.5mm² – 20A rating
• 2m 1.5mm² 3 core PVC cable terminated with a 13A fused plug
• Earth bonded with external M5 earth stud with 250mm long earth lead for maximum safety
Compare
- Additional information
Additional information
| Previous Part No. | 90/13A/4/RMSLH |
|---|---|
| Product Range | 19" Rack Range – 13A Sockets |
| Orientation | Horizontal |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 4 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 13A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.1 |
| Height (mm) | 88.8 (2U) |
| Width (mm) | 482.6 (19") |
| Depth (mm) | 45 |
| Digital Power Meter | None |
