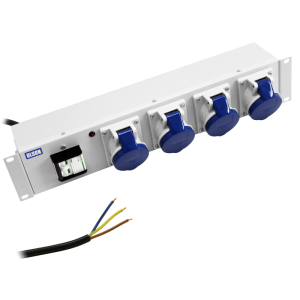

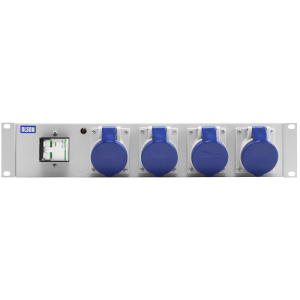

4 Way 19″ 2U Horizontal 16A BS4343 DP Circuit Breaker Rack Mount PDU
£175.40 Excl. VAT
Part No. 2604
- A robust mild steel construction with light grey RAL 7035 paint finish
- Internal wiring 4mm² – rated 32A
- 2U High x 45mm deep
- 20A double pole MCB with shroud (MCB brands may vary)
- 3m 4mm² 3 core PVC cable (no plug)
- Earth bonded with external M5 earth stud with 250mm long earth lead for maximum safety
Compare
- Additional information
Additional information
| Product Range | 19" Rack Range – Heavy Duty with 20A MCB Overload Protection |
|---|---|
| Orientation | Horizontal |
| Socket Outlet Type | 16A IEC 60309 (IEC309 / BS4343) |
| Number of Sockets | 4 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 32A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | BS 4343 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.5 |
| Height (mm) | 88.8 (2U) |
| Width (mm) | 482.6 (19") |
| Depth (mm) | 45 |
| Digital Power Meter | None |
