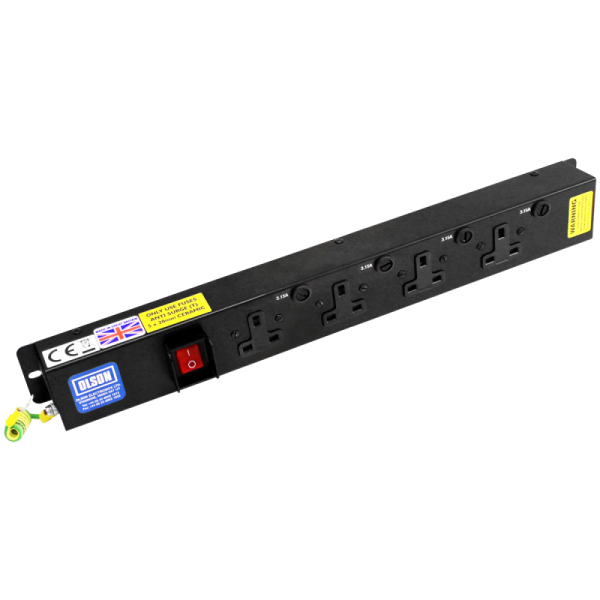

4 Way Angled 13A Individually Fused Illuminated Main Switch Wieland Connect PDU
£105.63 Excl. VAT
Part No. 4034/A
- A robust zinc coated mild steel construction
- Black (RAL 9005) finish as standard
- Illuminated double pole mains on/off switch
- Internal wiring 2.5mm² – 20A rating
- Individually fused sockets
- Brackets on each side for easy fixing/installation
- Earth bonded with external M5 earth stud with 250mm long earth lead for maximum safety
- All units have Wieland connectors at each end
- Suitable Wieland connectors available separately
Image not representative of actual product
Compare
- Additional information
Additional information
| Product Range | Desk Cable Management |
|---|---|
| Orientation | Horizontal |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 4 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | Yes |
| Fuse Rating | 3.15A |
| Individually Fused | Yes |
| Cable Length | No Cable Supplied |
| Plug Inlet Type | |
| Colour | Black (RAL 9005) |
| Current Rating | 13A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 and BS 6396 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.06 |
| Height (mm) | 62 |
| Width (mm) | 494 |
| Depth (mm) | 55 |
| Fixing Centres | 478 |
| Digital Power Meter | None |
