4 Way Vertical 13A Individually Fused PDU

4 Way Vertical 13A Individually Fused PDU

£90.11 Excl. VAT

In stock

£90.11 Excl. VAT

Part No. 7504/V

• Olson Power Strips feature the ‘fused socket’ which was designed especially for Olson Electronics, they give maximum protection and flexibility
• A robust mild steel construction
• Light grey RAL 7035 paint finish
• Internal wiring 2.5mm² – 20A rating
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Red neon “mains on” indicator
• Individually fused 13A sockets with 3A fuse fitted
• Brackets on each side for easy fixing/installation
• 2m cable – PVC (1.5mm² 3 core) terminated with a 13A fused plug
• Available for vertical, horizontal and 19″ rack mounting 2U high

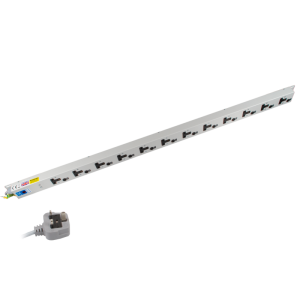

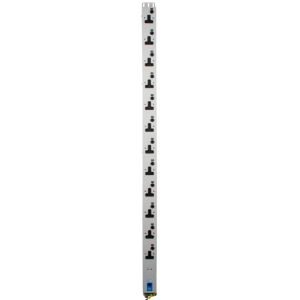

Image doesn’t reflect the number of sockets on this particular product.

View cart
Compare

Additional information

Product Range

Power Strips with Fused Sockets

Orientation

Vertical

Socket Outlet Type

UK 13A

Number of Sockets

4

Neon

Yes

Switched

Unswitched

Fuse Holder

Yes

Fuse Rating

3A

Individually Fused

Yes

Cable Length

2M

Plug Inlet Type

Colour

Light Grey (RAL 7035)

Current Rating

13A max

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

13 Amp Sockets – BS 1363

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

1.56

Height (mm)

568

Width (mm)

78

Depth (mm)

40

Digital Power Meter

None
