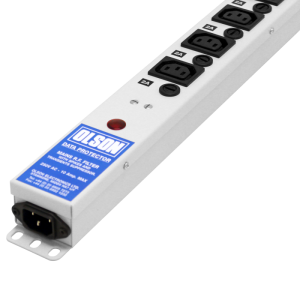

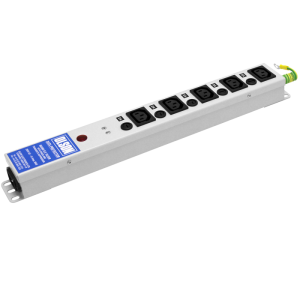

5 Way 10A IEC C13 Sockets Individually Fused RF Filtered Surge Protected Neon C14 Inlet PDU

5 Way 10A IEC C13 Sockets Individually Fused RF Filtered Surge Protected Neon C14 Inlet PDU

£101.49 Excl. VAT

In stock

£101.49 Excl. VAT

Part No. FU39005

• A robust mild steel construction with light grey RAL 7035 paint finish
• IEC 60320 C13 10A shuttered sockets
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Red LED “mains on” indicator
• Individually fused with 2A 20mm fuse
• Brackets on each side for easy fixing/installation
• IEC 60320 C14 10A Inlet
• 10A RF filter (data filter)

Surge Filter:
• All modes L-N, L-E, N-E
• Maximum operating voltage – 275V rms ac
• Transient energy absorption – 3 x 140J
• Transient peak current – (8/20uS) – 6500A
• Impulse response time – <50nS
• Varistor voltage @ 1mA dc test current – 430V
• Maximum clamping voltage @ 100A (8/20uS) – 710V

RF Filter:
• Operating voltage up to 250V at max 400Hz
• Filter rated current 10A @ 400ºC, 11.5A @ 25ºC
• Leakage current 2 x 0.2mA max @ 220V 50Hz
• Fitted with ZNR voltage transient and earthline choke
• Standard spec. Z280G
• Max continuous voltage 320V AC rms @ 25ºC
• Max continuous voltage 416V DC @25ºC
• Varistor 450V min @ 1mA
• Energy 140 Joules 10/10000
• 800V clamping voltage @ 100A
• Max 800mW continuous
• UL, CSA, VDE

View cart
Compare

Additional information

Product Range

IEC 60320 C13 Individually Fused Sockets

Orientation

Vertical

Socket Outlet Type

C13 10A IEC 60320

Number of Sockets

5

Neon

Yes

Switched

Unswitched

Fuse Holder

Yes

Fuse Rating

2A

Individually Fused

Yes

Cable Length

No Cable Supplied

Plug Inlet Type

Colour

Light Grey (RAL 7035)

Current Rating

10A max.

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

CSA, IEC 60320 C13 10A Shuttered (BEAB, UL, VDE)

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

1.4

Height (mm)

433

Width (mm)

50

Depth (mm)

40

Digital Power Meter

None
