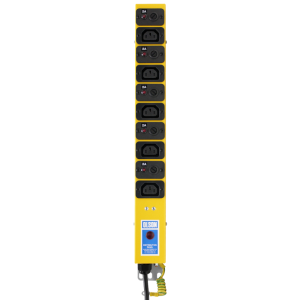

5 Way 10A Individual Neon Fused IEC C13 Sockets CEE 7/7 Plug PDU
£103.24 Excl. VAT
Part No. NF6A/05/GER
• A robust mild steel construction
• Elegant two tone paint finish with the panel in yellow and a grey case
• IEC 60320 C13 10A shuttered sockets
• All sockets are individually fused with individual LED indicators
• 2A fuses fitted as standard
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Red LED “mains on” indicator
• Brackets on each side for easy fixing and installation
• High integrity dual earthing
- Additional information
Additional information
| Previous Part No. | NF6A/5/GER |
|---|---|
| Product Range | IEC 60320 C13 Shuttered Sockets |
| Orientation | Vertical |
| Socket Outlet Type | C13 10A IEC 60320 |
| Number of Sockets | 5 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | CSA, IEC257, SEMKO, UL, VDE |
| Fuse Rating | 2A |
| Fuse Link | 2 Amp, 20mm, BEAB, SEMKO, VDE |
| Individually Fused | Yes |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey Case (RAL 7035), Yellow Panel (RAL 1012) |
| Current Rating | 10A max. |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | CSA, IEC 60320 C13 10A Shuttered (BEAB, UL, VDE) |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.48 |
| Height (mm) | 473 |
| Width (mm) | 50 |
| Depth (mm) | 40 |
| Digital Power Meter | None |
