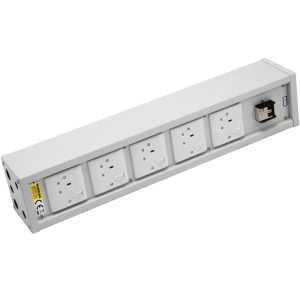

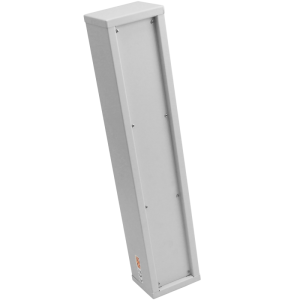

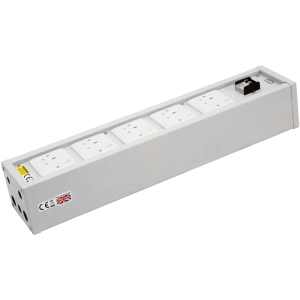

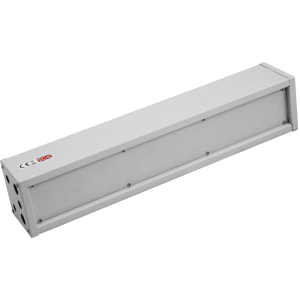

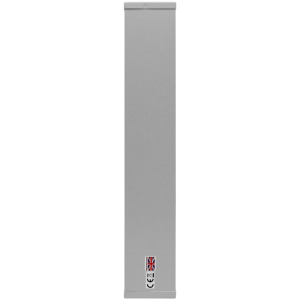

5 Way 13A Individually Switched DP Circuit Breaker Power Post Service Pillar
£247.82 Excl. VAT
Part No. SP/05SW/CB
- Designed to complement the modern open-plan office layout
- A robust Zintec mild steel construction
- Light grey RAL 7035 paint finish as standard
- Fitted with 16A circuit breaker (MCB brands may vary)
- Earth bonded for maximum safety
- Complete segregation between mains and data services
- Internal wiring for the 13A power sockets in 2.5mm²
Compare
- Additional information
Additional information
| Previous Part No. | SP/5SW/CB |
|---|---|
| Product Range | Service Pillars |
| Orientation | Vertical |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 5 |
| Neon | No |
| Switched | Individually Switched |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | No Cable Supplied |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 13A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 6.3 |
| Height (mm) | 695 |
| Width (mm) | 140 |
| Depth (mm) | 120 |
| Digital Power Meter | None |
