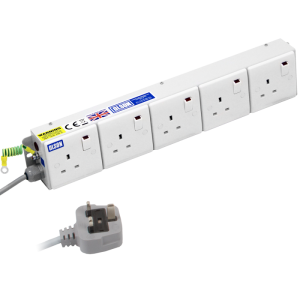

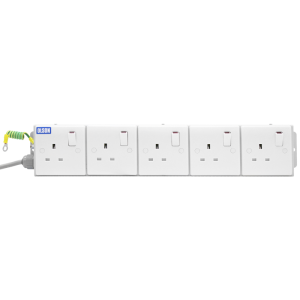

5 Way 13A Switched Socket Neon Flat 13A Plug Portable PDU
£96.21 Excl. VAT
Part No. P13A/05
- A robust mild steel construction
- Light grey RAL 7035 paint finish
- Internal wiring 2.5mm² – 20A rating
- Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
- Side mounted red neon “mains on” indicator
- 2m 1.5mm² 3 core PVC cable terminated with a 13A fused plug
- Fitted with brackets either side for wall or bench mounting
- For the instant power distribution in the office, laboratory or workshop environment
- These units can be used free standing, fitted to benches and fitted to walls.
Compare
- Additional information
Additional information
| Previous Part No. | P13A/5 |
|---|---|
| Product Range | Portable Mains Distribution Panels |
| Orientation | Horizontal |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 5 |
| Neon | Yes |
| Switched | Individually Switched |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 13A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.7 |
| Height (mm) | 88 |
| Width (mm) | 475 |
| Depth (mm) | 44 |
| Digital Power Meter | None |
