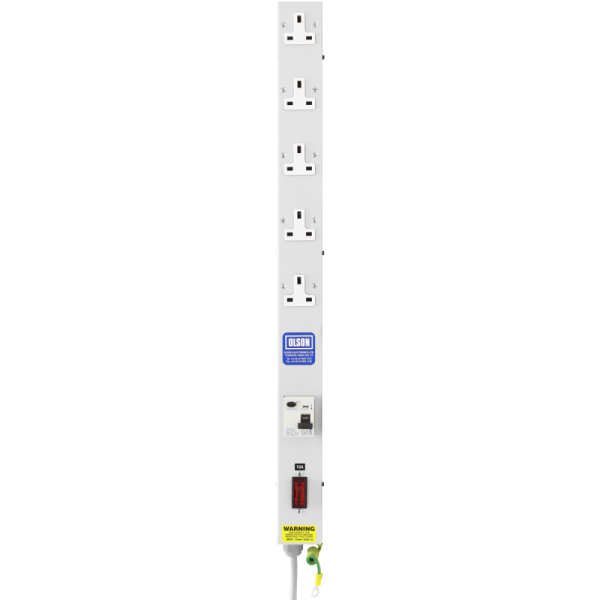

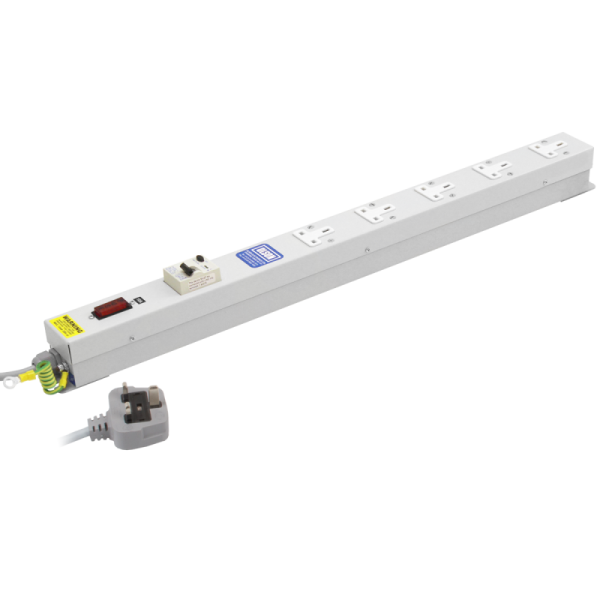

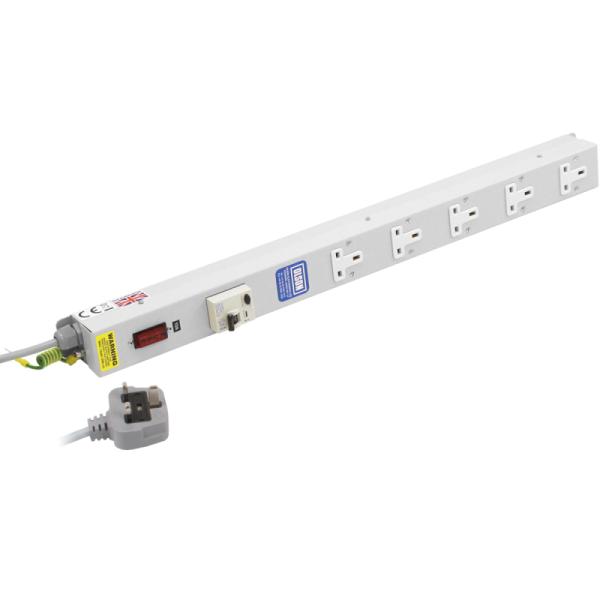

5 Way 13A Vertical Sockets Fused RCD Protected 13A Plug PDU
£144.97 Excl. VAT
Part No. 2505
• Red illuminated fuse holder with 10A fuse fitted
• 10A panel mounted mains fuse
• 30mA 25A RCD trip as standard (RCD brands may vary)
• Robust steel construction finished in light grey RAL 7035
• Terminated with 2m of 3 core 1.5mm² cable and 13A fused plug
• Internal wiring 2.5mm² – rated 20A
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Brackets on each side for easy fixing and installation
- Additional information
Additional information
| Product Range | Fused Distribution Panels with RCD Protection |
|---|---|
| Orientation | Vertical |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 5 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | Yes |
| Fuse Rating | 10A |
| Fuse Link | Fuse Link – BS 1363 |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 13A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.1 |
| Height (mm) | 671 |
| Width (mm) | 50 |
| Depth (mm) | 47 |
| Fixing Centres | 655 |
| Digital Power Meter | None |
