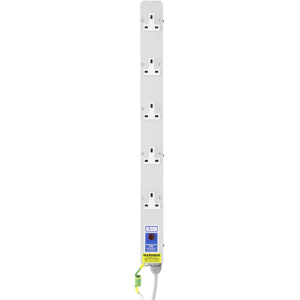

5 Way 13A Vertical Sockets Neon 13A Plug PDU

5 Way 13A Vertical Sockets Neon 13A Plug PDU

£71.96 Excl. VAT

In stock

£71.96 Excl. VAT

Part No. X13A/05

• Red neon incoming power indicator
• Strong steel case finished in light grey RAL 7035
• Terminated with 2m of 3 core 1.5mm² cable and 13A fused plug
• Internal wiring rated 20A
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• 95mm spacing between sockets

View cart
Compare

Additional information

Previous Part No.

X13A/5

Product Range

Vertical 95mm Spacing 13A Distribution Panels

Orientation

Vertical

Socket Outlet Type

UK 13A

Number of Sockets

5

Neon

Yes

Switched

Unswitched

Fuse Holder

No

Individually Fused

No

Cable Length

2M

Plug Inlet Type

Colour

Light Grey (RAL 7035)

Current Rating

13A max

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

13 Amp Sockets – BS 1363

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

1.7

Height (mm)

582

Width (mm)

50

Depth (mm)

40

Fixing Centres

567

Digital Power Meter

None
