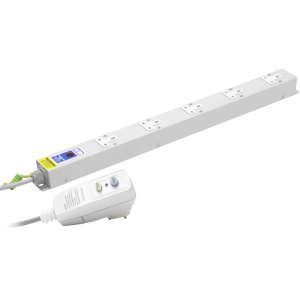

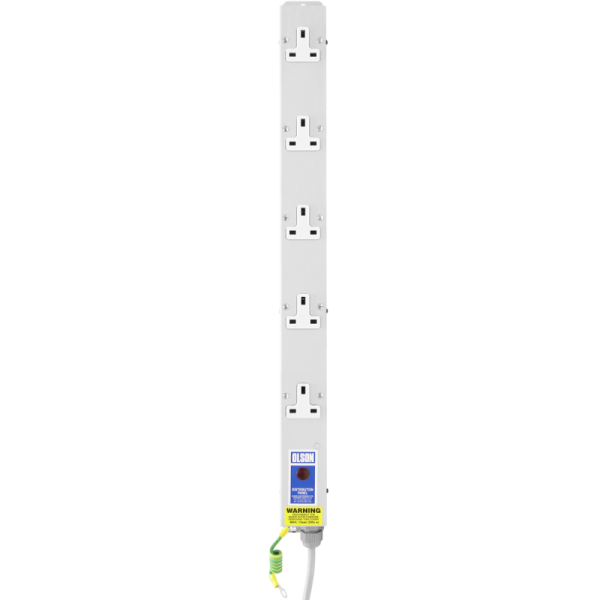

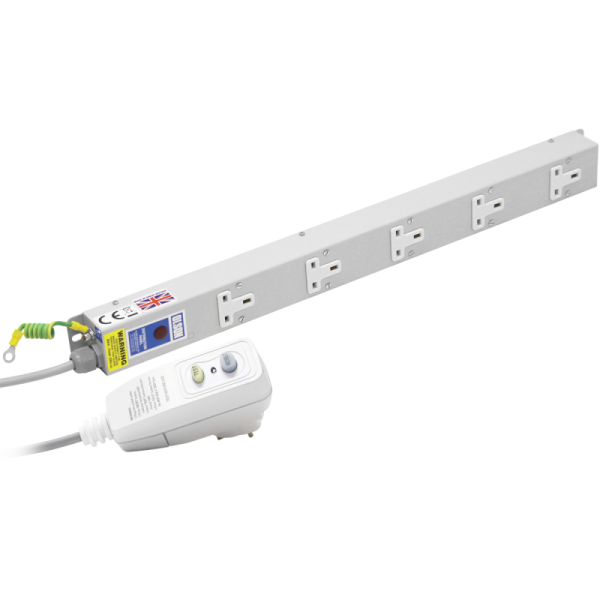

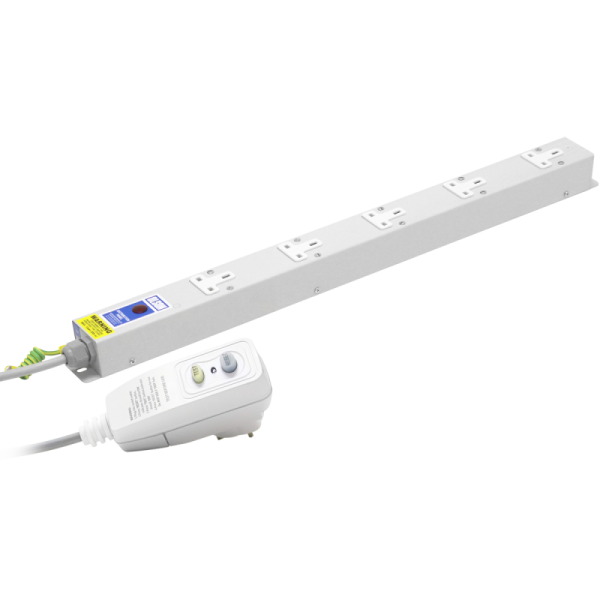

5 Way 13A Vertical Sockets Neon 13A RCD Plug PDU
£123.19 Excl. VAT
Part No. XRCD13A/05
- Red neon incoming power indicator
- Strong steel case finished in light grey RAL 7035
- Terminated with 2m of 3 core 1.5mm² cable and 13A RCD plug
- Internal wiring rated 20A
- Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
- 95mm spacing between sockets
- 30mA 13A RCD Plug as standard
Compare
- Additional information
Additional information
| Previous Part No. | XRCD13A/5 |
|---|---|
| Product Range | Vertical 95mm Spacing 13A Distribution Panels |
| Orientation | Vertical |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 5 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 13A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.7 |
| Height (mm) | 582 |
| Width (mm) | 50 |
| Depth (mm) | 40 |
| Fixing Centres | 567 |
| Digital Power Meter | None |
