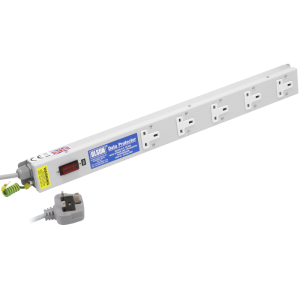

5 Way 13A Vertical Sockets RF Filtered Surge Protected Fused 13A Plug PDU - Image 1

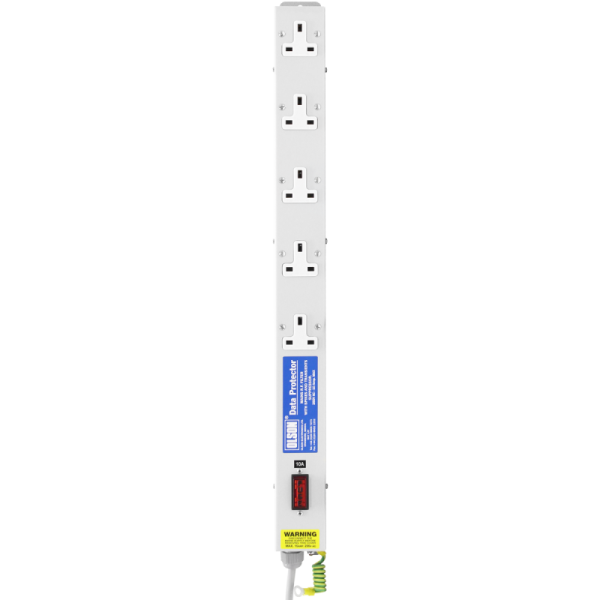

5 Way 13A Vertical Sockets RF Filtered Surge Protected Fused 13A Plug PDU - Image 2

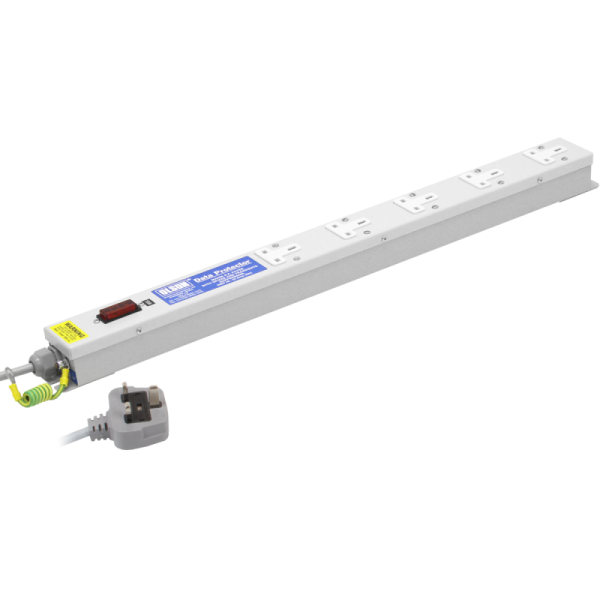

5 Way 13A Vertical Sockets RF Filtered Surge Protected Fused 13A Plug PDU - Image 3

5 Way 13A Vertical Sockets RF Filtered Surge Protected Fused 13A Plug PDU

5 Way 13A Vertical Sockets RF Filtered Surge Protected Fused 13A Plug PDU

£126.59 Excl. VAT

In stock

£126.59 Excl. VAT

Part No. 2305

  • Red illuminated fuse holder with 10A fuse fitted
  • Robust steel construction finished in light grey RAL 7035
  • Terminated with 2m of 3 core 1.5mm² cable and 13A fused plug
  • Internal wiring 2.5mm² – rated 20A
  • Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
  • Brackets on each side for easy fixing and installation

Surge Filter:

  • All modes L-N, L-E, N-E
  • Maximum operating voltage – 275V rms ac
  • Transient energy absorption – 3 x 140J
  • Transient peak current – (8/20uS) – 6500A
  • Impulse response time – <50nS
  • Varistor voltage @ 1mA dc test current – 430V
  • Maximum clamping voltage @ 100A (8/20uS) – 710V

    • RF Filter:

  • Operating voltage up to 250V at max 400Hz
  • Filter rated current 10A @ 400ºC, 11.5A @ 25ºC
  • Leakage current 2 x 0.2mA max @ 220V 50Hz
  • Fitted with ZNR voltage transient and earthline choke
  • Standard spec. Z280G
  • Max continuous voltage 320V AC rms @ 25ºC
  • Max continuous voltage 416V DC @25ºC
  • Varistor 450V min @ 1mA
  • Energy 140 Joules 10/10000
  • 800V clamping voltage @ 100A
  • Max 800mW continuous
  • UL, CSA, VDE
    • Compare

    Additional information

    Product Range

    Fused Distribution Panels with RF Filter
    Orientation

    Vertical
    Socket Outlet Type

    UK 13A
    Number of Sockets

    5
    Neon

    Yes
    Switched

    Unswitched
    Fuse Holder

    Yes
    Fuse Rating

    10A
    Fuse Link

    Fuse Link – BS 1363
    Individually Fused

    No
    Cable Length

    2M
    Plug Inlet Type

    Colour

    Light Grey (RAL 7035)
    Current Rating

    13A max
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Manufactured To

    BS 5733
    Socket Outlet Compliance

    13 Amp Sockets – BS 1363
    Cable Compliance

    BS 6500
    UKCA / CE Compliant

    Yes
    RoHs Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    2
    Height (mm)

    594
    Width (mm)

    50
    Depth (mm)

    40
    Fixing Centres

    578
    Digital Power Meter

    None
