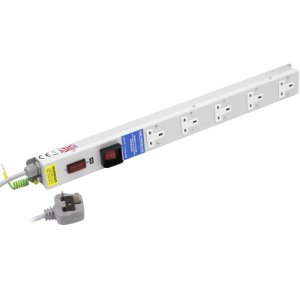

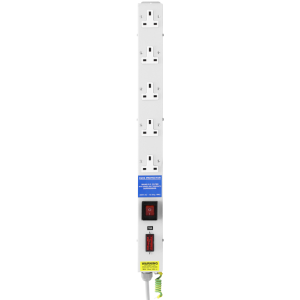

5 Way 13A Vertical Sockets RF Filtered Surge Protected Illuminated Main Switch Fused 13A Plug PDU

Part No. 2405

• Red illuminated fuse holder with 10A fuse fitted
• Illuminated double pole on/off switch
• Robust steel construction finished in light grey RAL 7035
• Terminated with 2m of 3 core 1.5mm² cable and 13A fused plug
• Internal wiring 2.5mm² – rated 20A
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Brackets on each side for easy fixing and installation

Surge Filter:
• All modes L-N, L-E, N-E
• Maximum operating voltage – 275V rms ac
• Transient energy absorption – 3 x 140J
• Transient peak current – (8/20uS) – 6500A
• Impulse response time – <50nS
• Varistor voltage @ 1mA dc test current – 430V
• Maximum clamping voltage @ 100A (8/20uS) – 710V

RF Filter:
• Operating voltage up to 250V at max 400Hz
• Filter rated current 10A @ 400ºC, 11.5A @ 25ºC
• Leakage current 2 x 0.2mA max @ 220V 50Hz
• Fitted with ZNR voltage transient and earthline choke
• Standard spec. Z280G
• Max continuous voltage 320V AC rms @ 25ºC
• Max continuous voltage 416V DC @25ºC
• Varistor 450V min @ 1mA
• Energy 140 Joules 10/10000
• 800V clamping voltage @ 100A
• Max 800mW continuous
• UL, CSA, VDE
