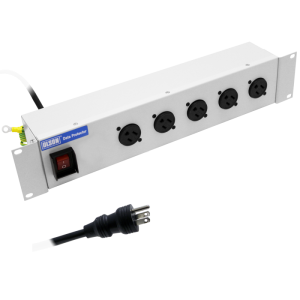

5 Way 19″ 2U 15A American RF Filtered Surge Protected Main Switch Rack Mount PDU
£148.53 Excl. VAT
Part No. FU/05/R.US
- The OLSON DATA PROTECTOR range is designed to filter mains borne transients, switching surges, RF interference, intermittent spikes, and disturbances from lightning
- A robust mild steel construction with light grey RAL 7035 paint finish
- Internal wiring 2.5mm² – 20A rating
- Earth bonded with external M5 earth stud and 250mm long earth lead
- Illuminated double pole switch with shroud
- Brackets on each side for easy fixing and installation
- Available with British, German, American and French sockets
- 2m 1.5mm² 3 core PVC cable terminated with country coordinated plug
- UK versions fitted with 10A fuse in the plug top
- Other european versions have panel mounted 10A fuse
- Specials can be made to order
Compare
- Additional information
Additional information
| Previous Part No. | FU/5/R.US |
|---|---|
| Product Range | Filter / Surge Protection Range – International Range |
| Orientation | Horizontal |
| Socket Outlet Type | American 15A (Nema 5-15) |
| Number of Sockets | 5 |
| Neon | Yes |
| Switched | Main Switch |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 15A |
| Operating Voltage | Normal Operating Voltage: 110VAC – Maximum Operating Voltage: 125VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | Nema 5-15 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.3 |
| Height (mm) | 88.8 (2U) |
| Width (mm) | 482.6 (19") |
| Depth (mm) | 75 |
| Digital Power Meter | None |
